Tech Supplies Graduate Plus Modern Union Graduate Wood Lathe 230v Variable Speed

Description

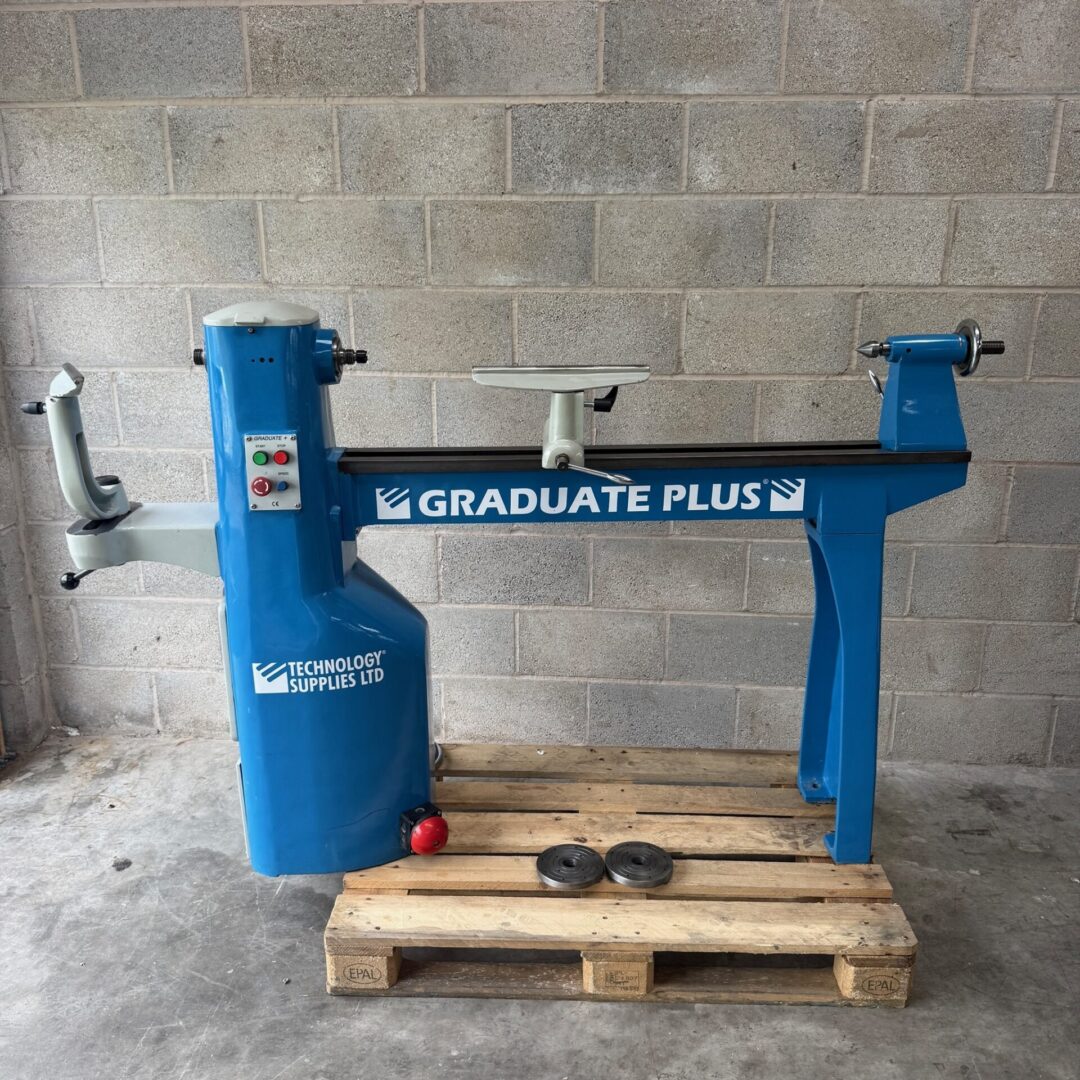

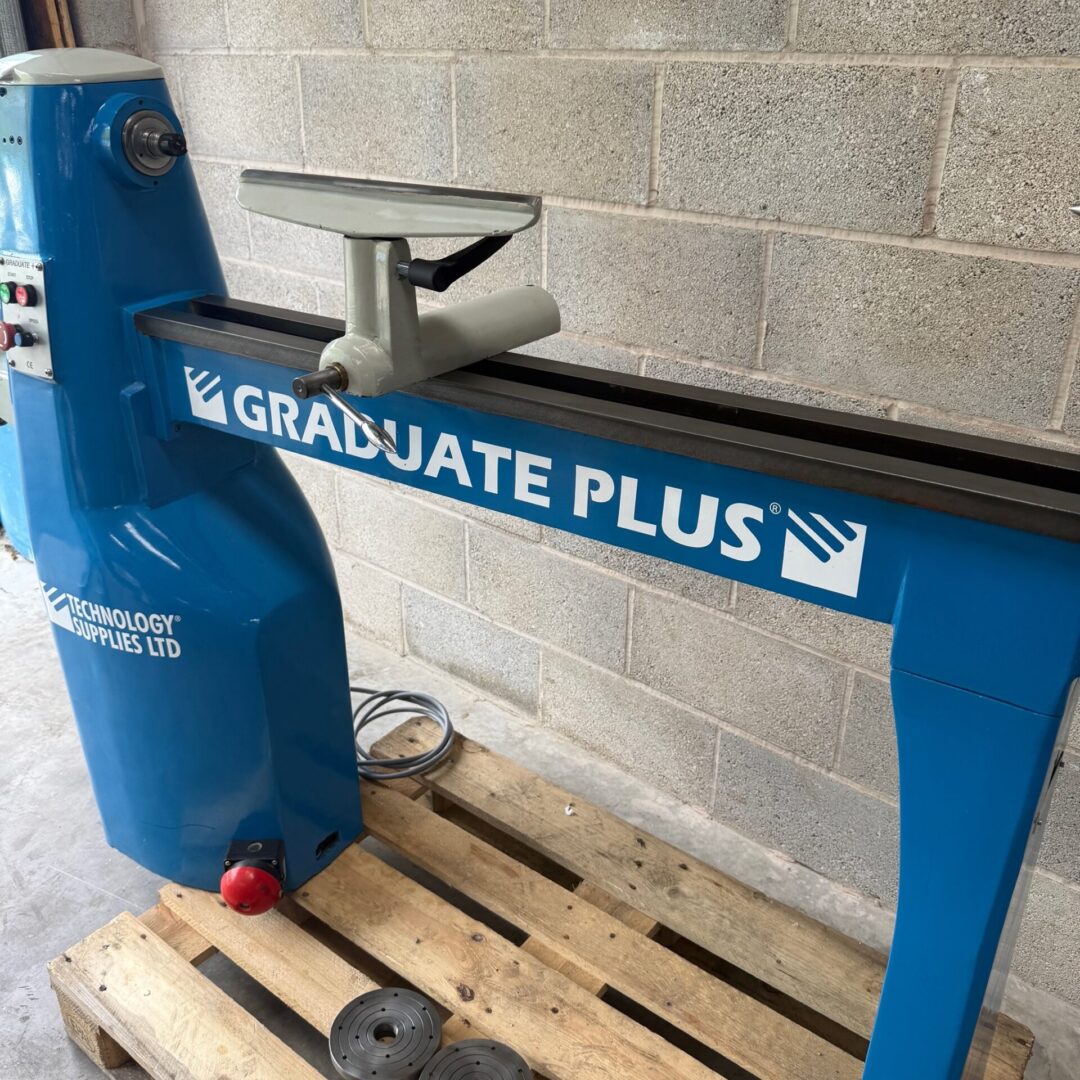

Ostia Tools are proud to be able to offer for sale this Technology Supplies Graduate Plus Wood Lathe

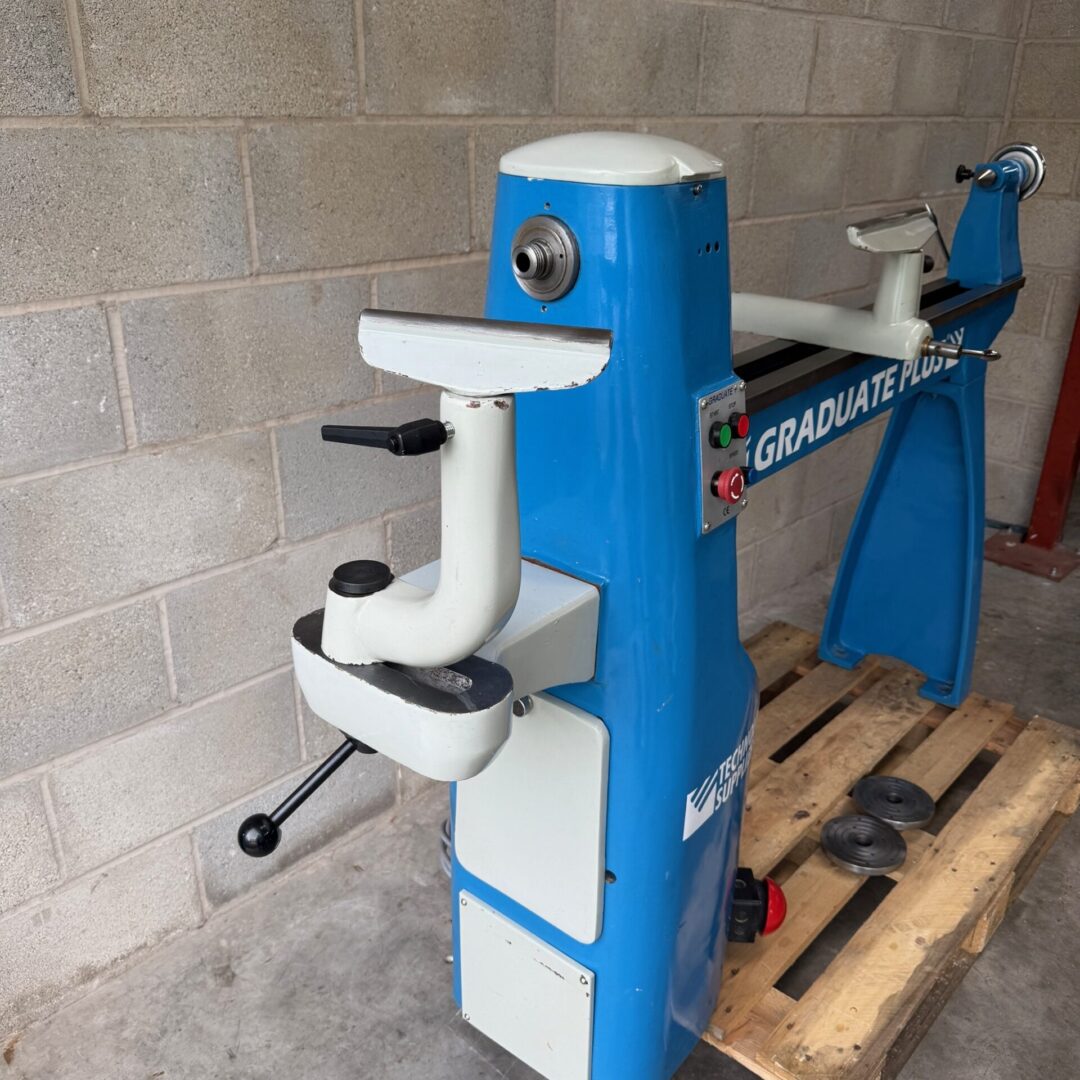

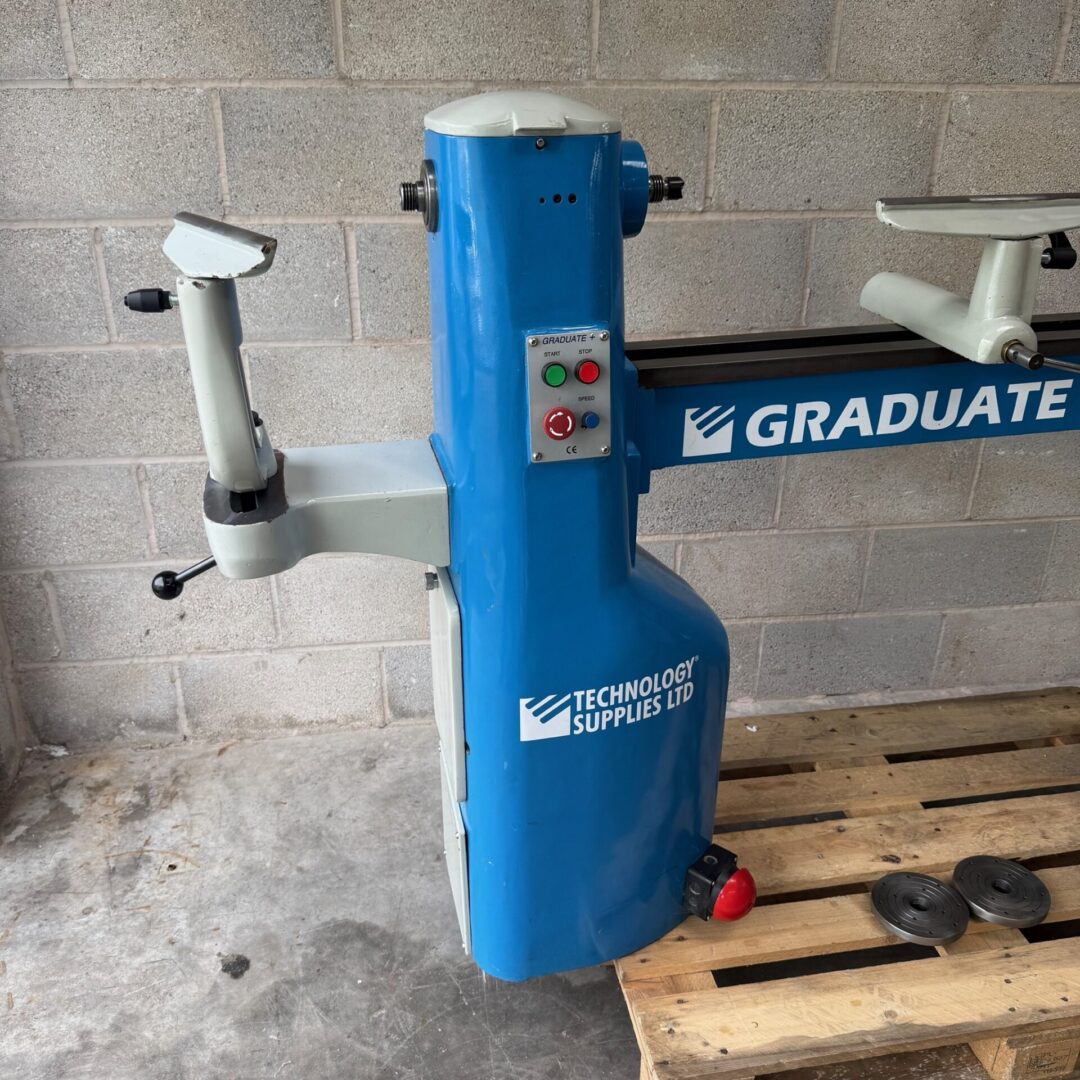

Based on the Union Graduate lathe, this machine has a larger capacity on both the inboard lathe bed side and the outboard bowl turning side.

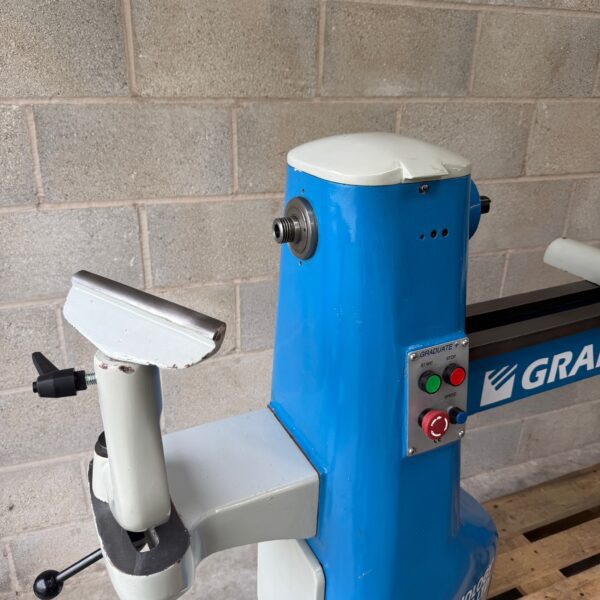

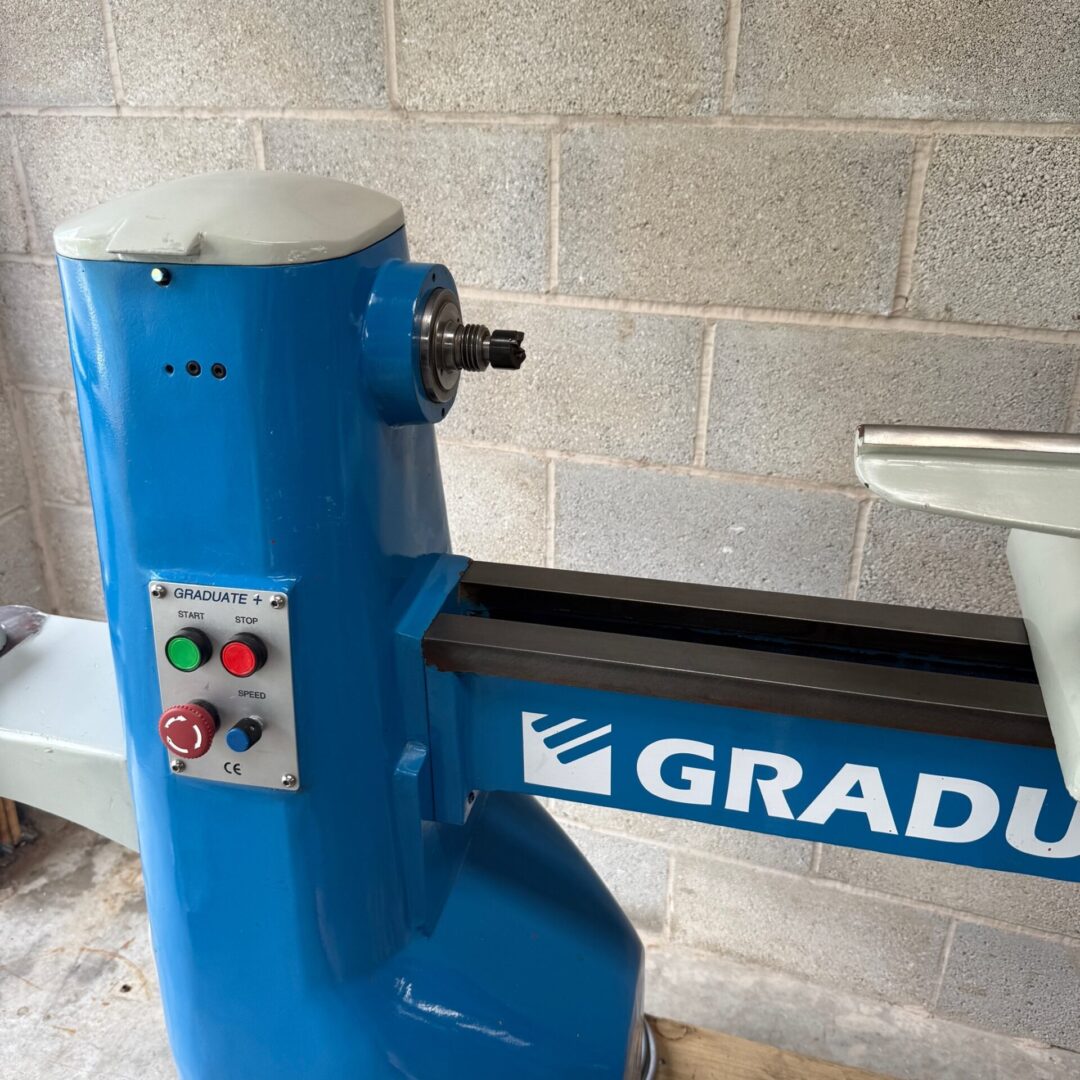

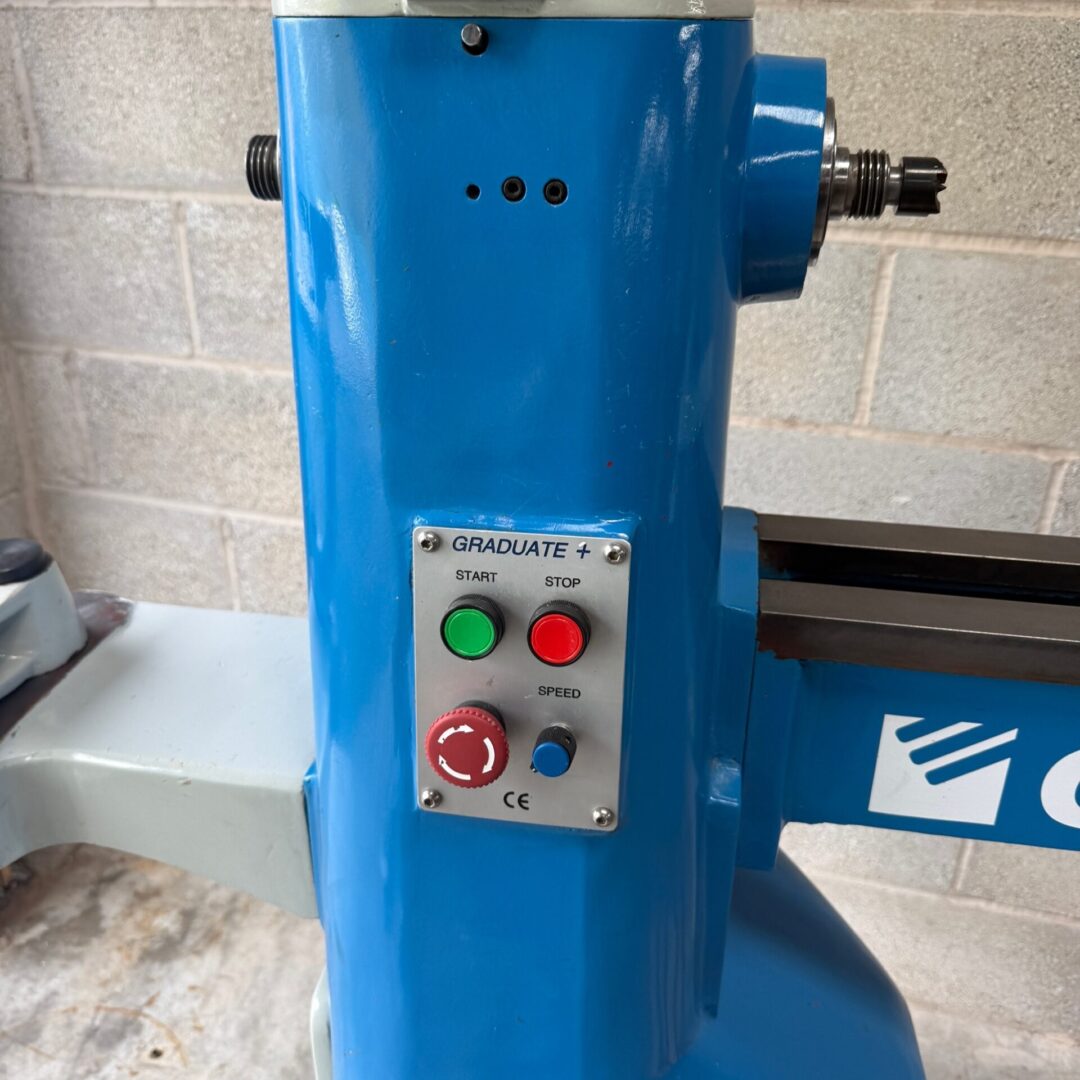

It is fitted with a 3 phase motor which runs through a VFD to give the variable speed control. It requires a 230v single phase connection to run the machine so ideal for workshops without 3 Phase.

Full working order and excellent condition throughout.

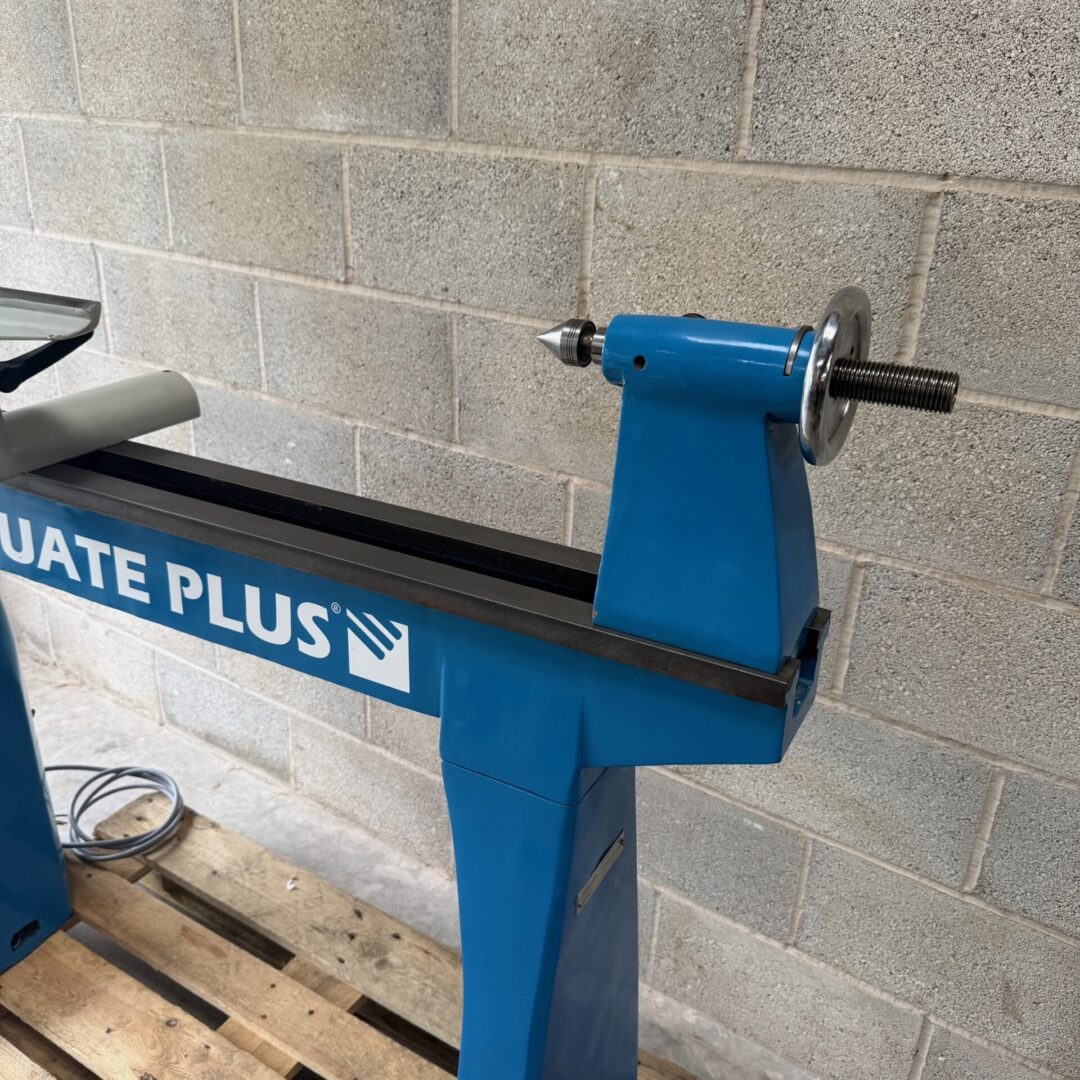

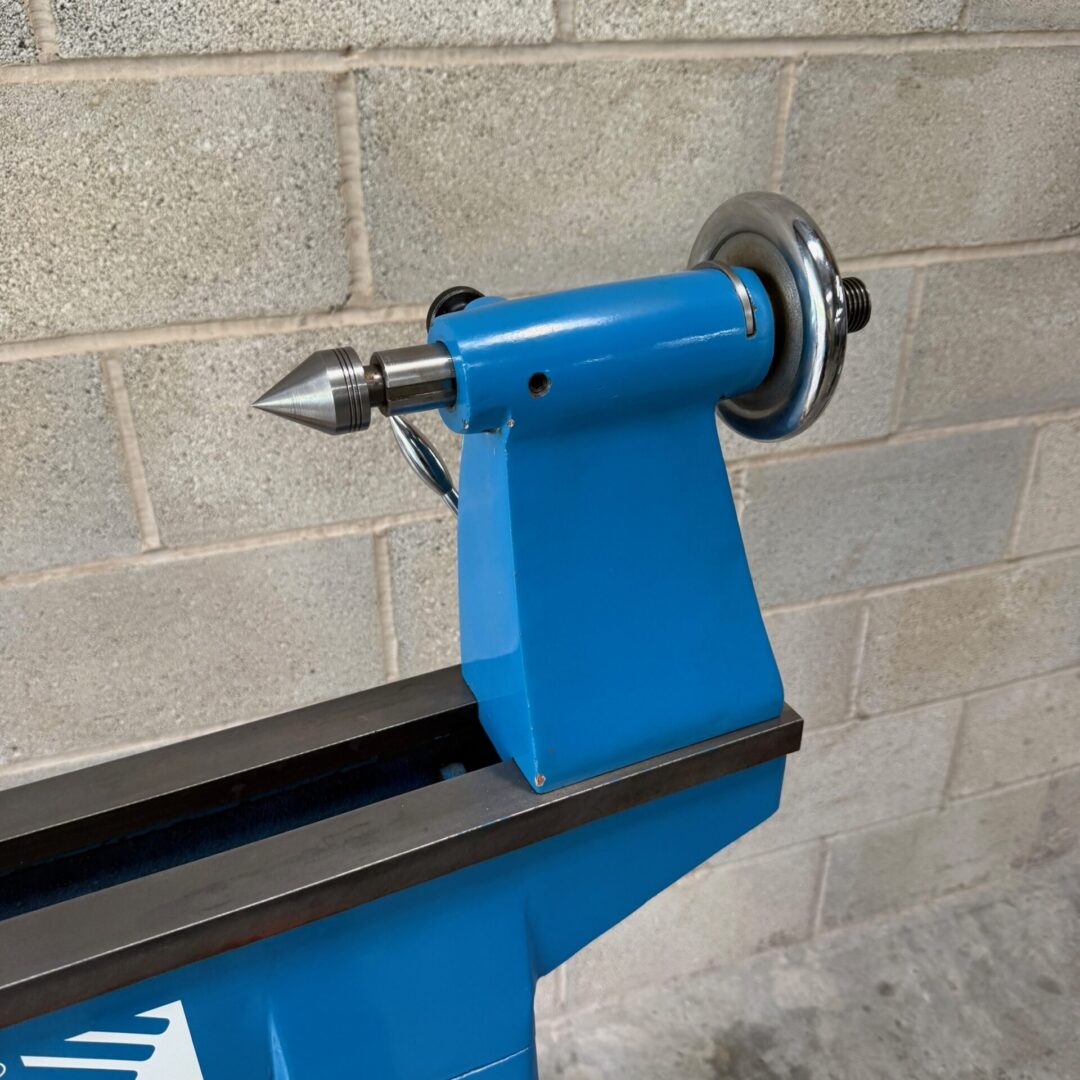

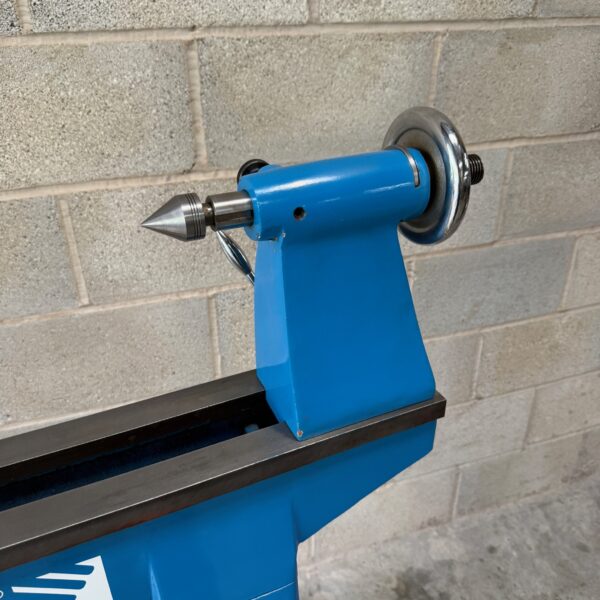

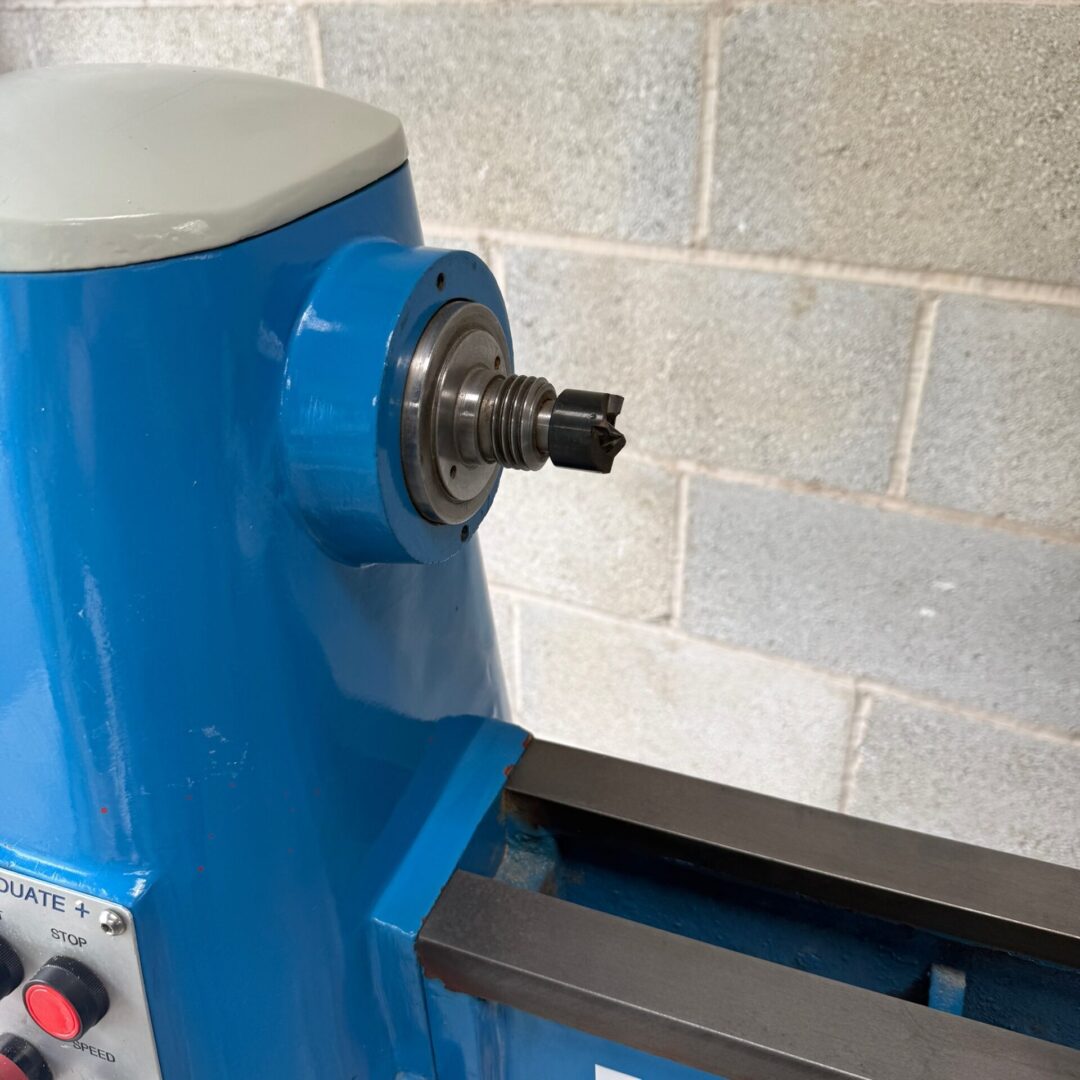

Supplied with drive dog, live centre, spindle nose cover and 2 dual thread faceplates which can fit on both sides of the lathe

Graduate Plus Specs

Centre Height: 8”

Between Centres: 43”

Usable Distance between centres with Drive dog and live centre: 40”

Bed Length: 53”

Total Machine Length: 72” (6ft)

Headstock Height: 49”

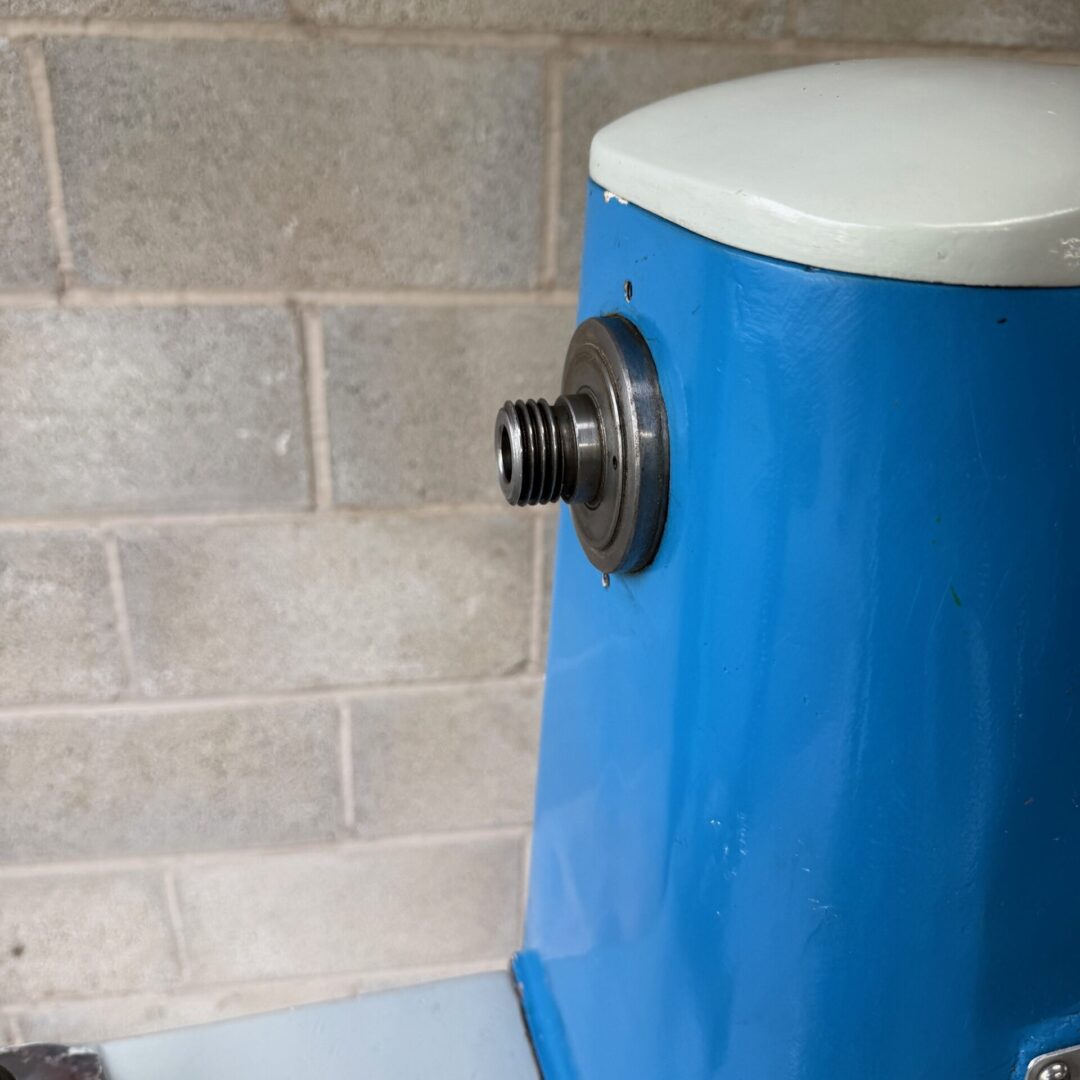

Outboard Centre Height: 13”

Outboard Centre Height over Swan Neck: 10”

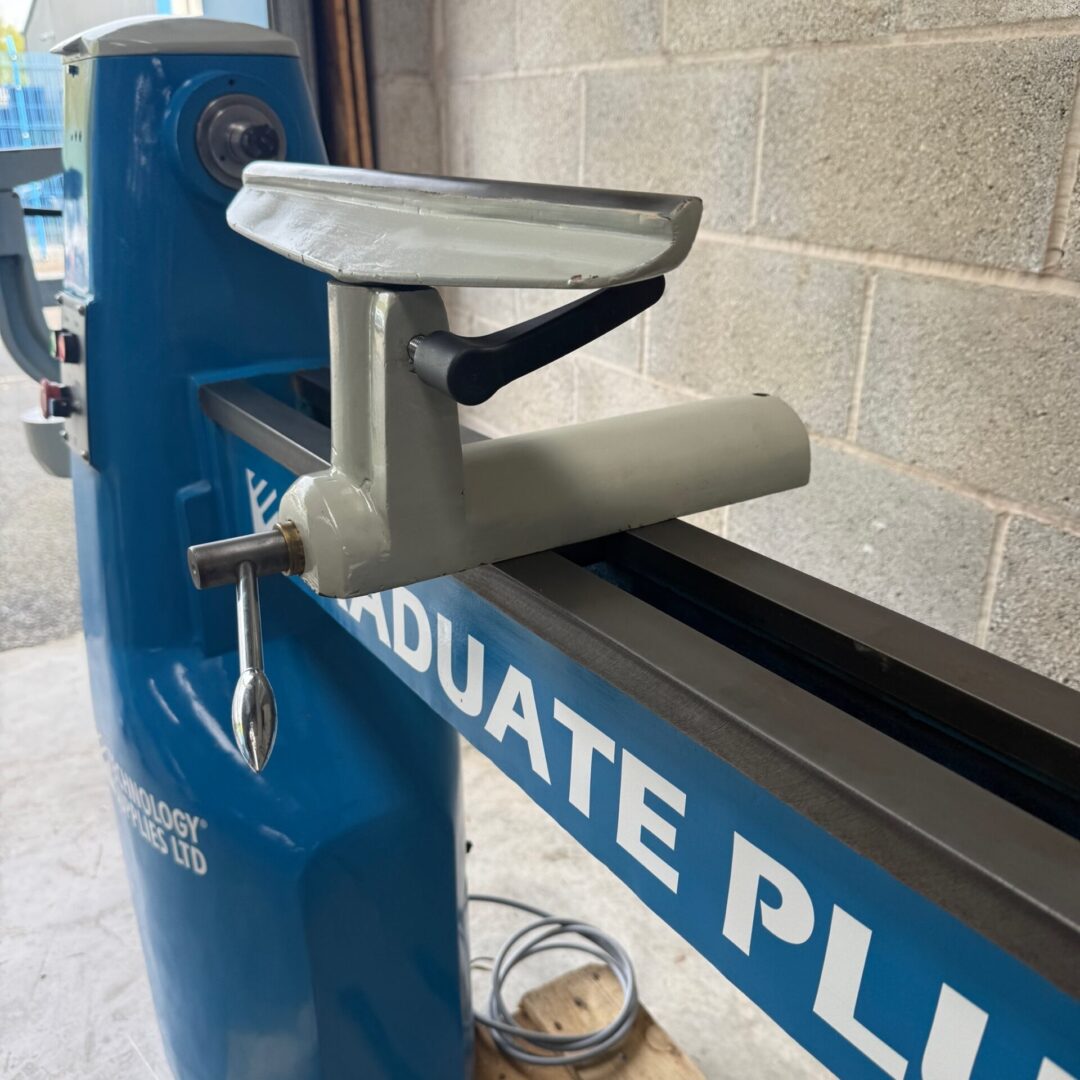

Centre Height over Banjo: 6”
