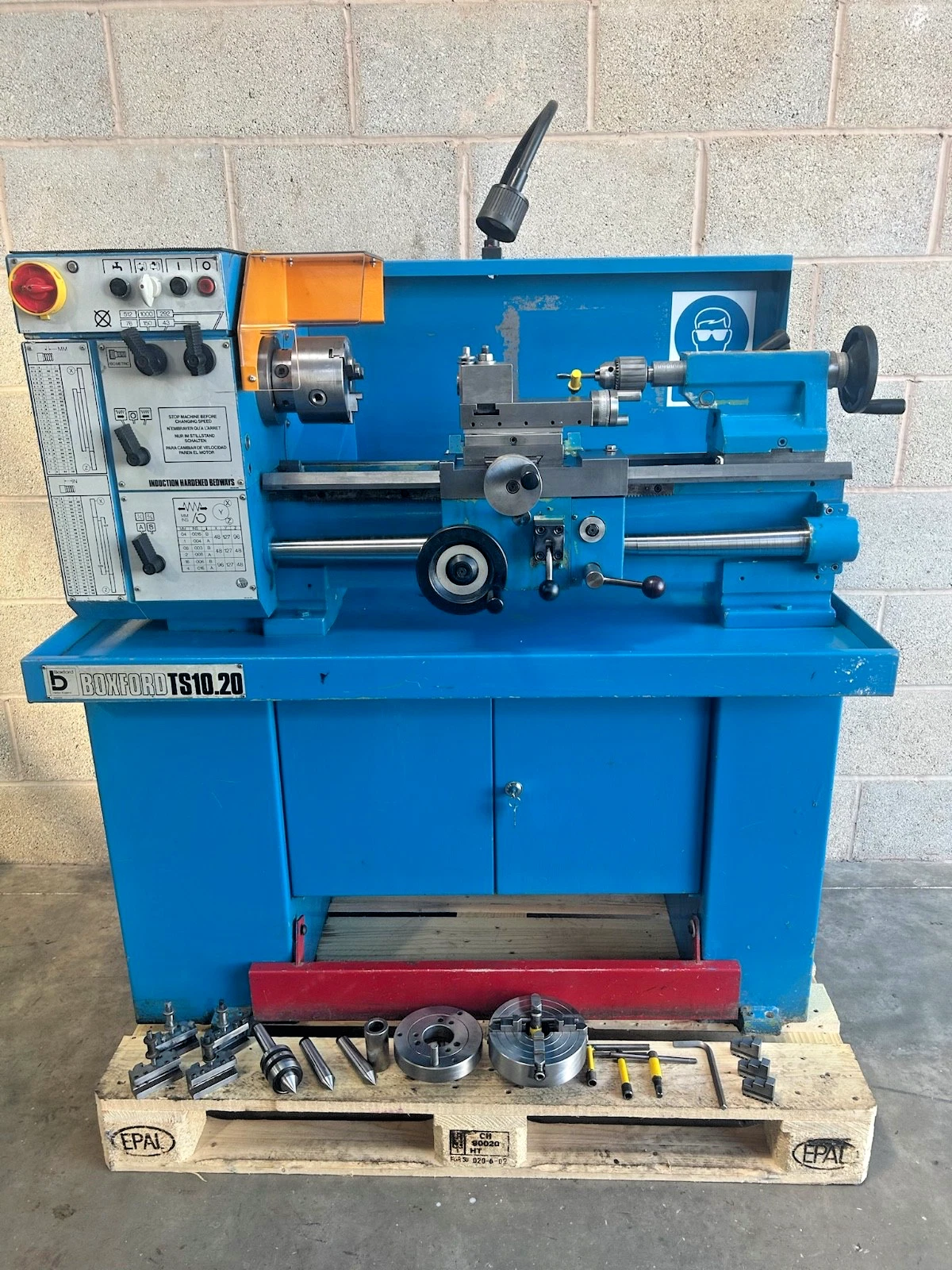

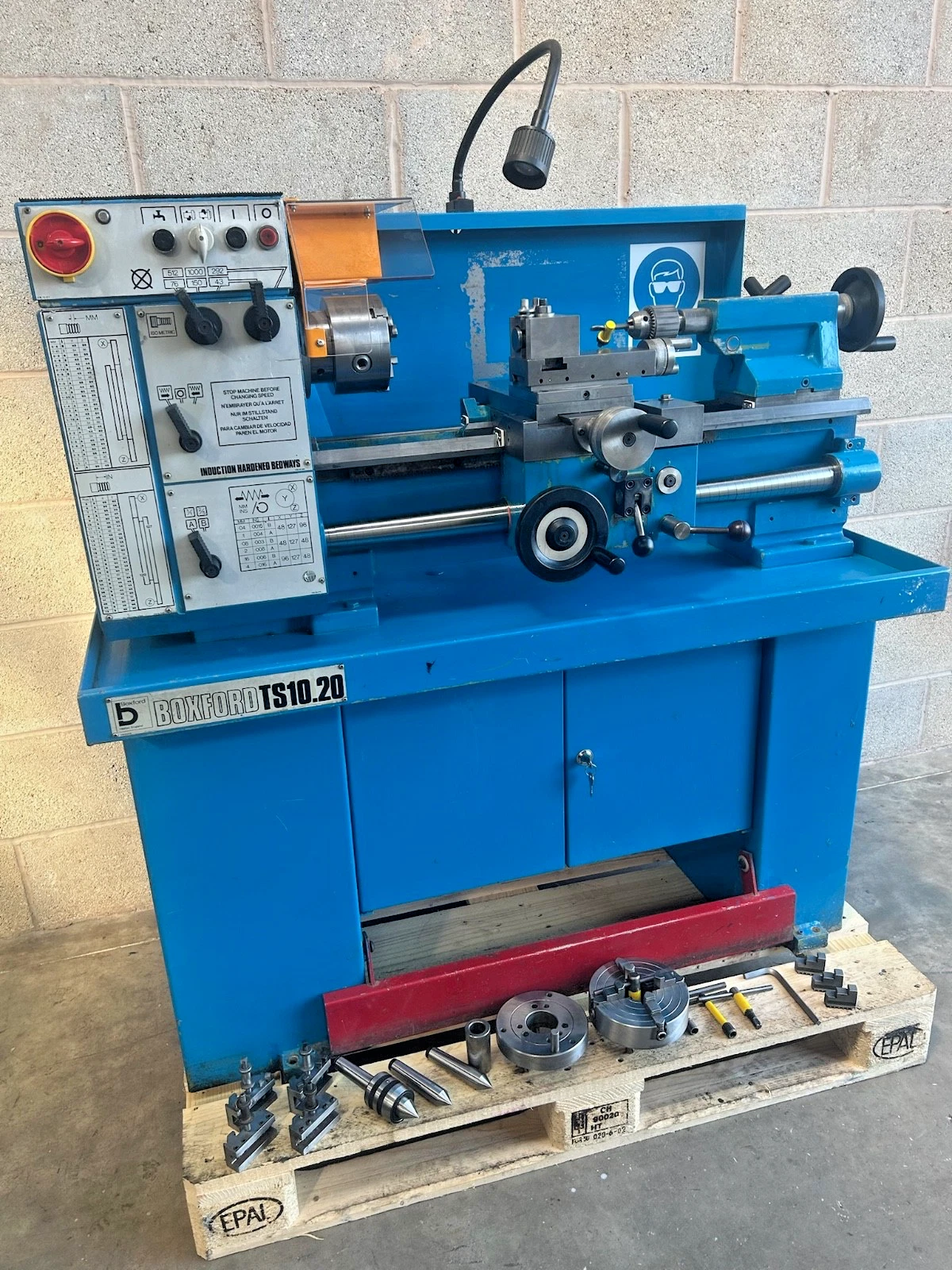

Boxford TS 10.20 Centre Lathe 3 Phase 6 Speeds

Description

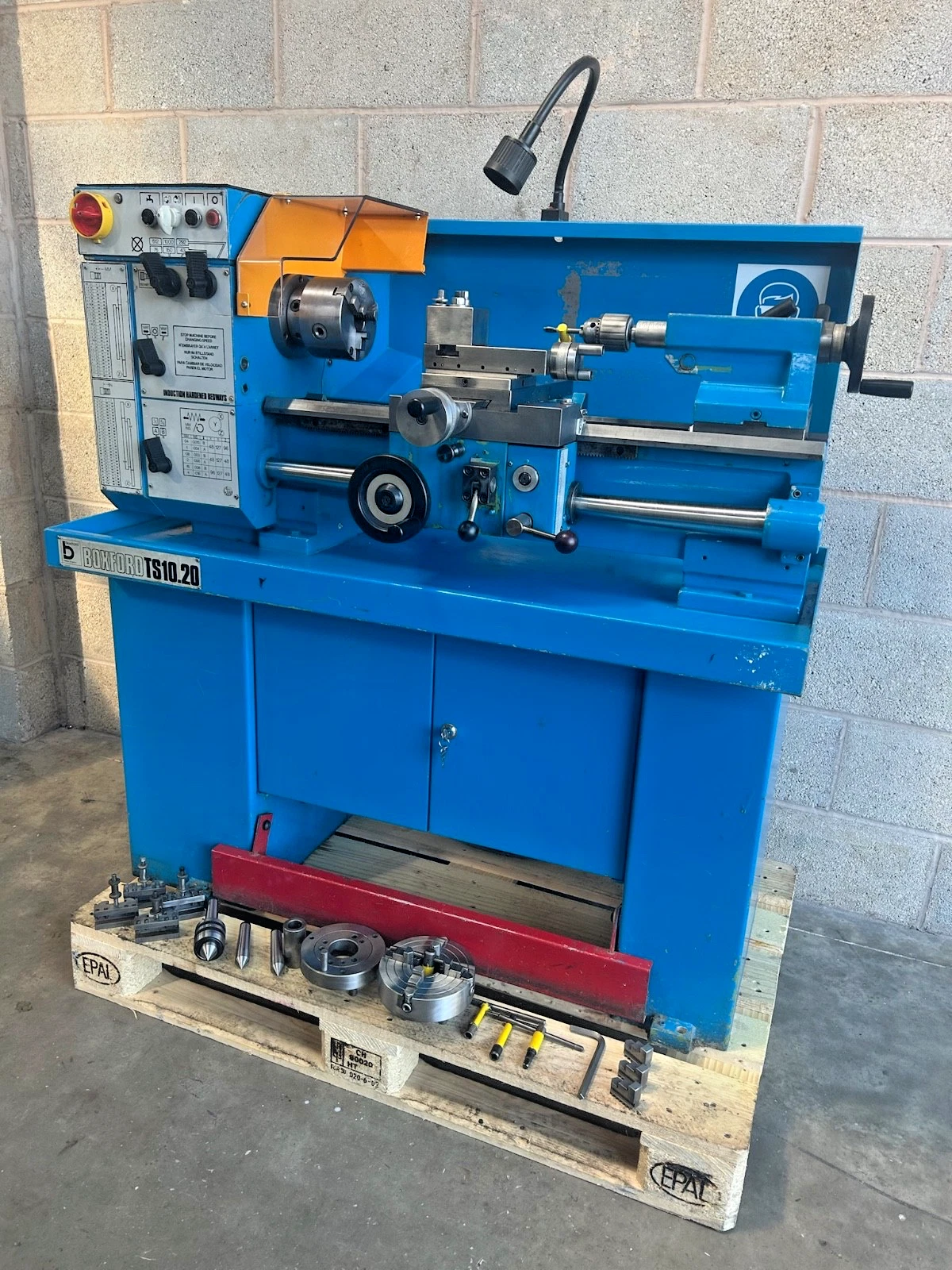

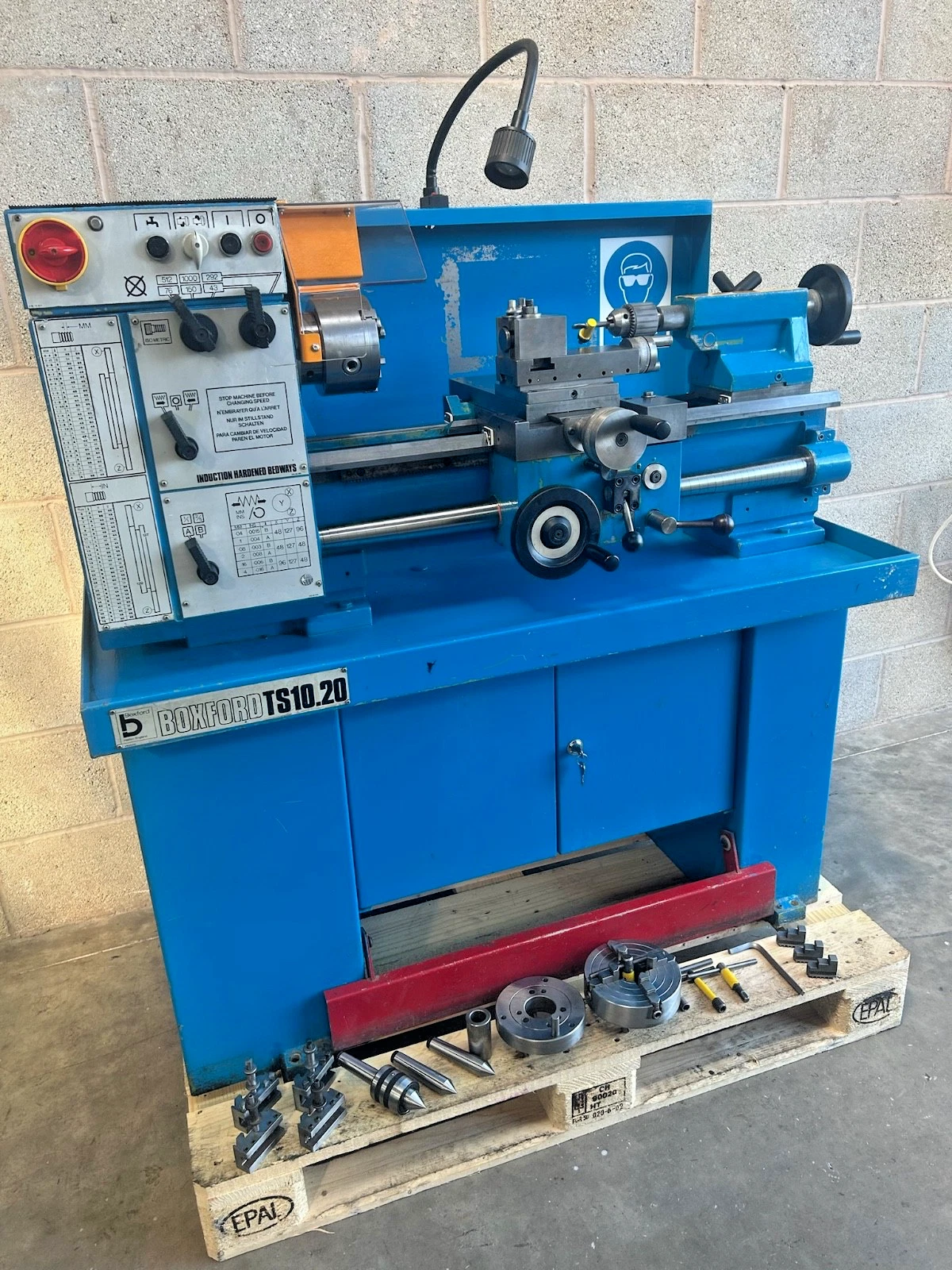

Ostia Tools offer for sale this Boxford TS 10.20 Lathe.

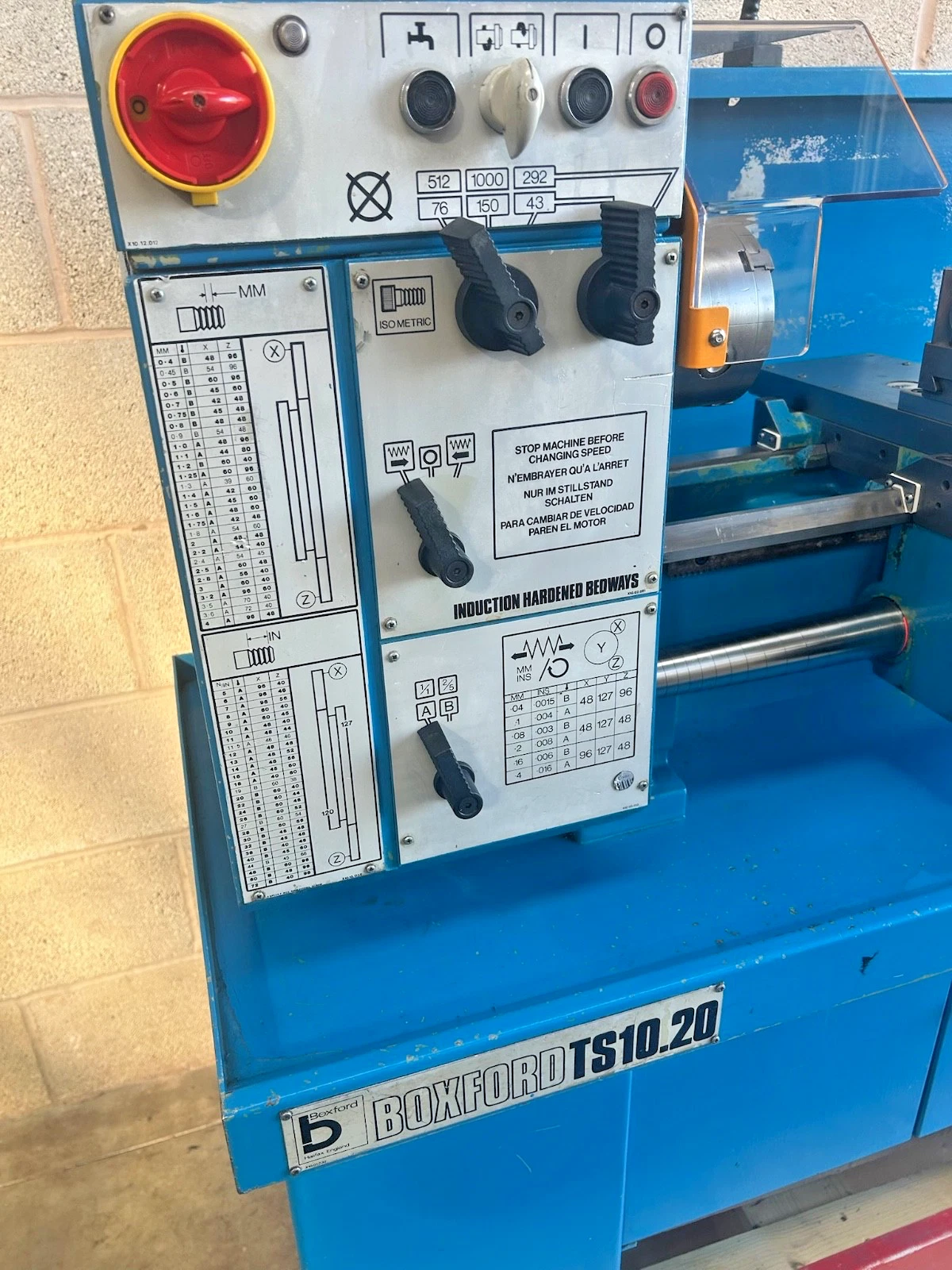

6 speeds

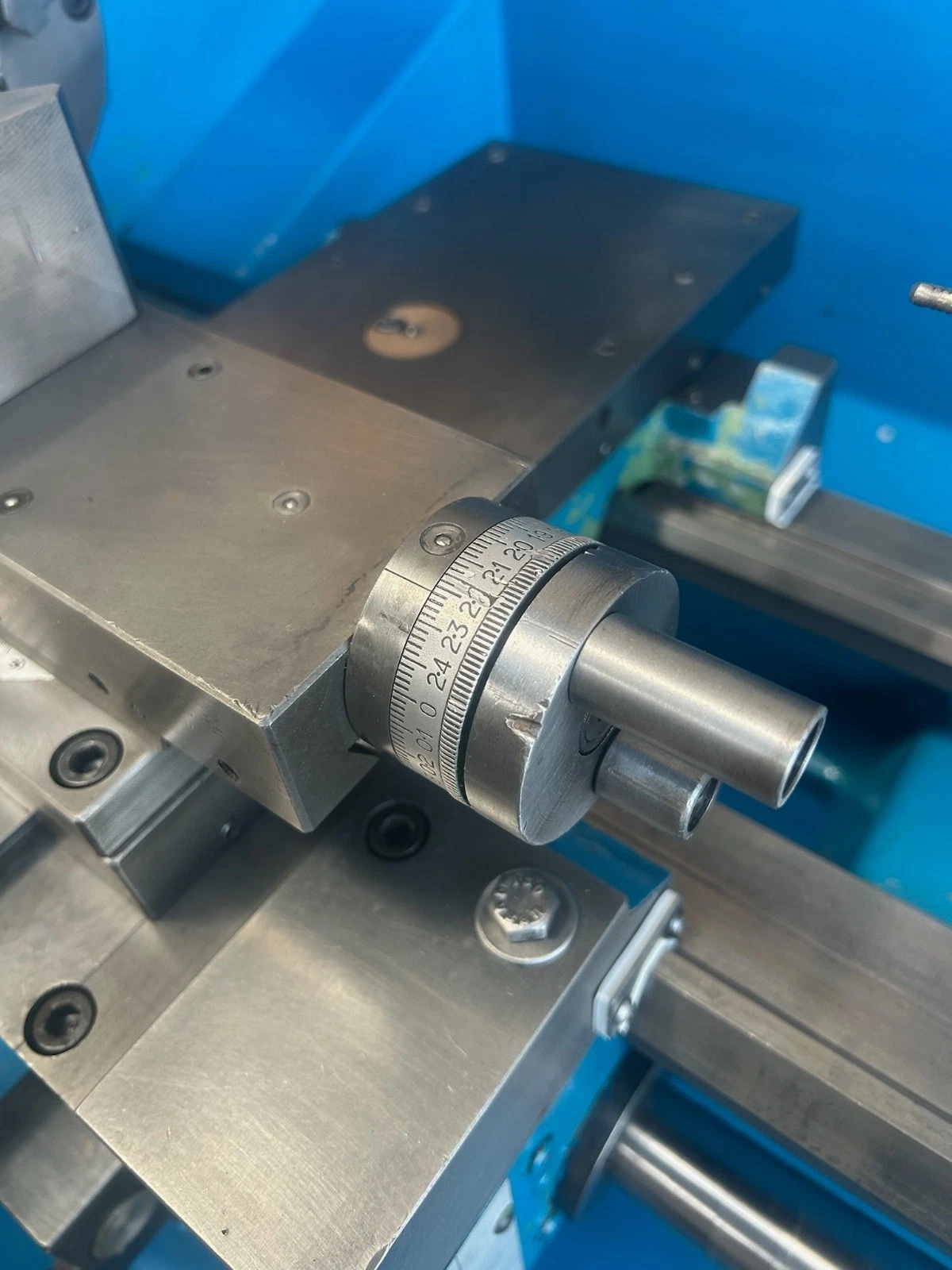

Metric graduations

3 Phase

Full working order

10″ Swing

20″ between centres

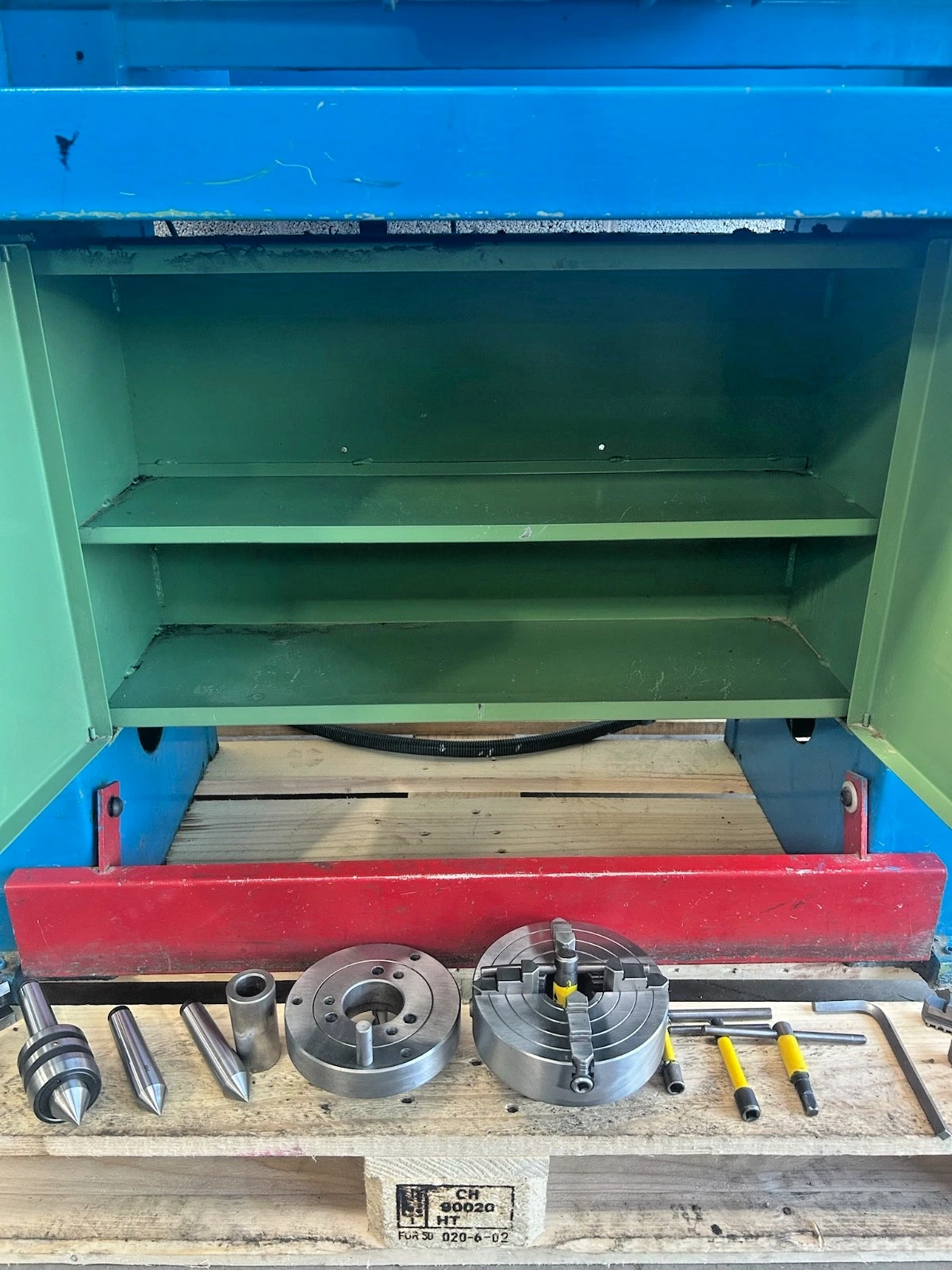

The machine has been repainted. It was originally green and the original colour can be seen inside of the cabinet

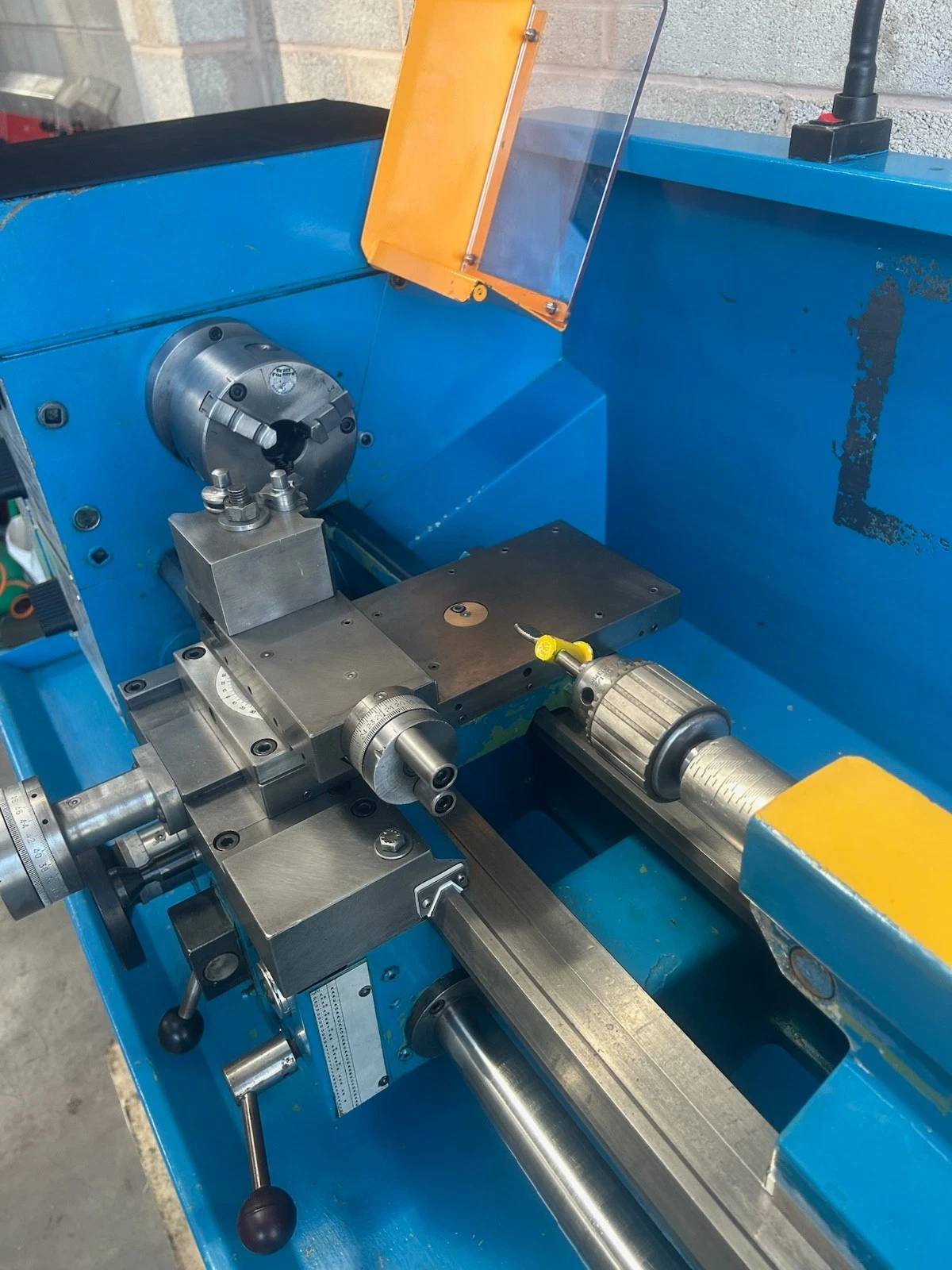

We have fitted it with a new set of bed wipers and new chuck guard and thoroughly serviced the machine.

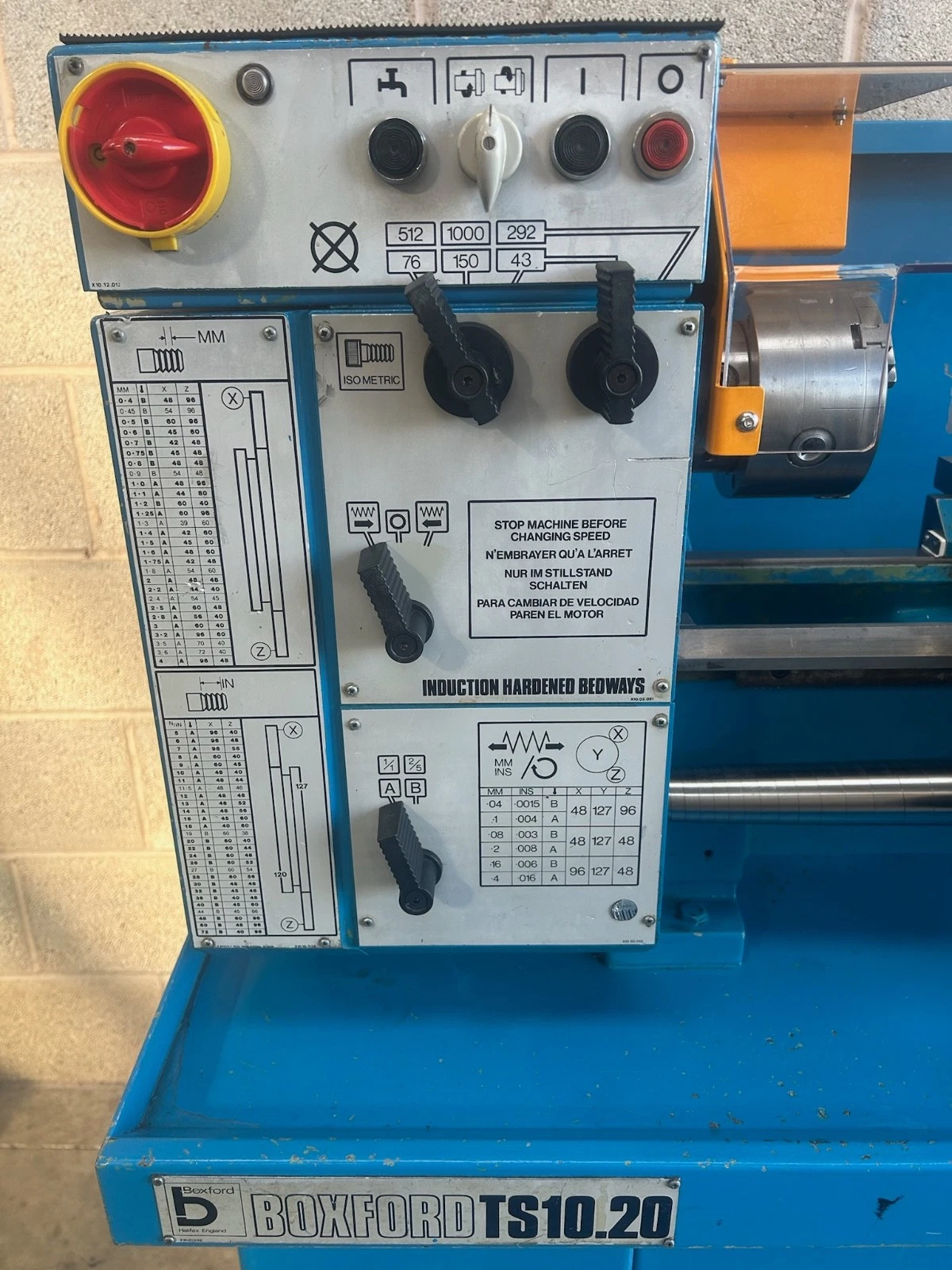

This model does not have the full screw cutting gearbox. As such is requires a set of change gears to configure the gear train for screw cutting (basically similar in specs to the old style Boxford BUD). The machine does come with the set of change gears but these are not shown in the photos. The gears supplied allow the threads shown in bold to be cut. Additional gears are needed to cut all the threads listed but  the ones shown that is cannot cut with gears supplied are very rare threads that in reality no one is cutting. For example it is threads such as 3.5mm, 11.5, 19, 27 and 44 TPI. This is why Boxford did not supply them as new.

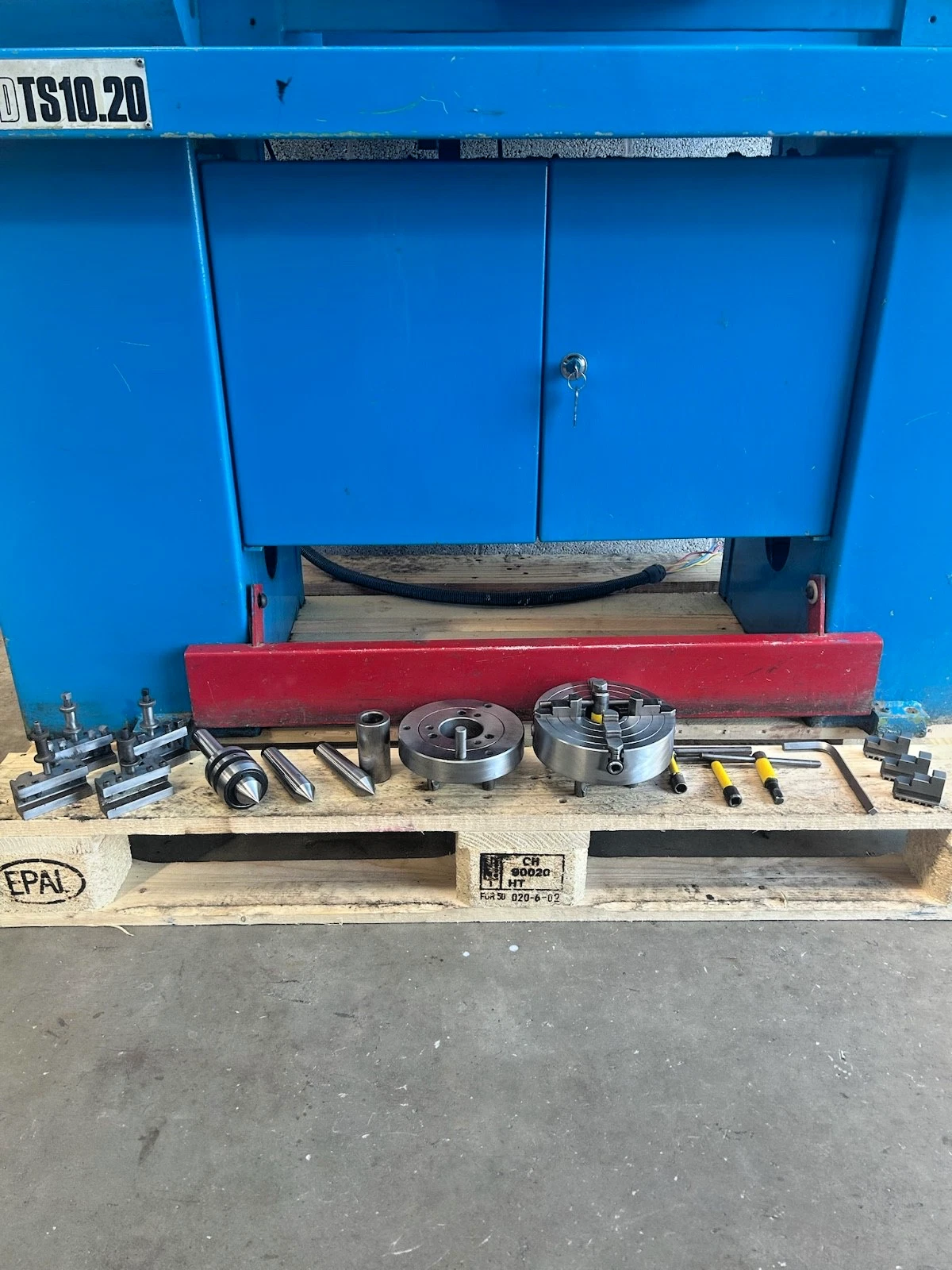

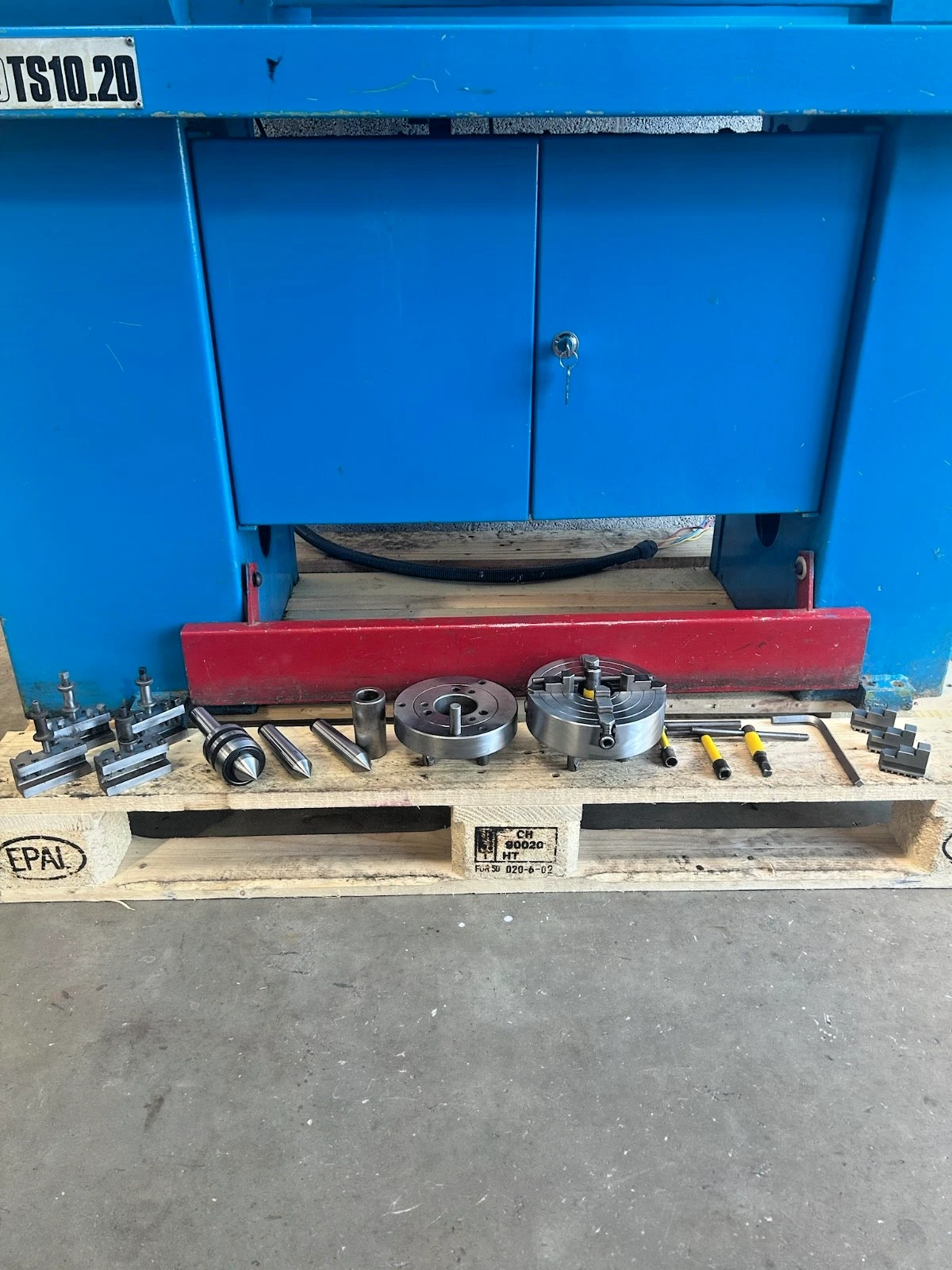

Supplied with:

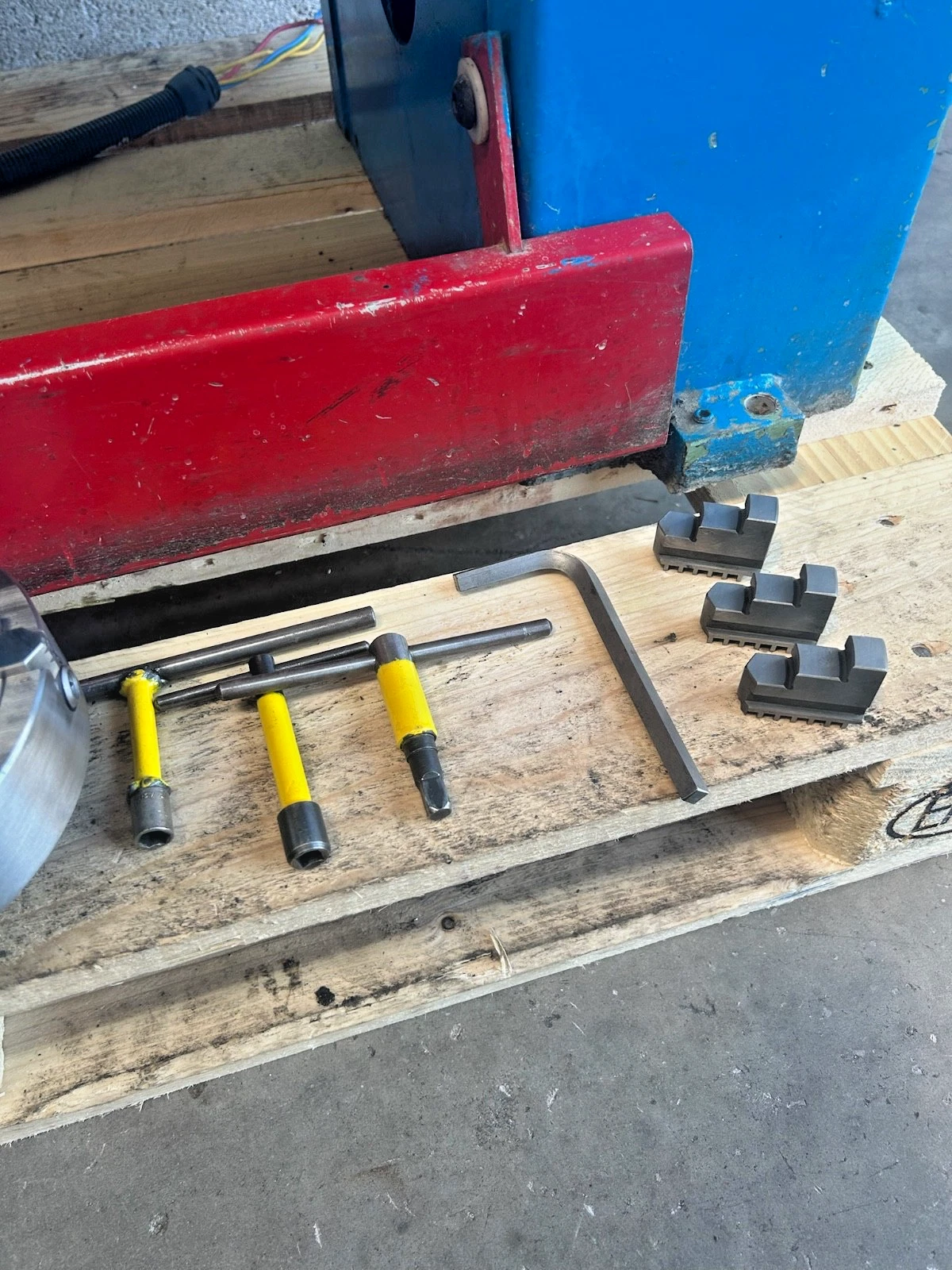

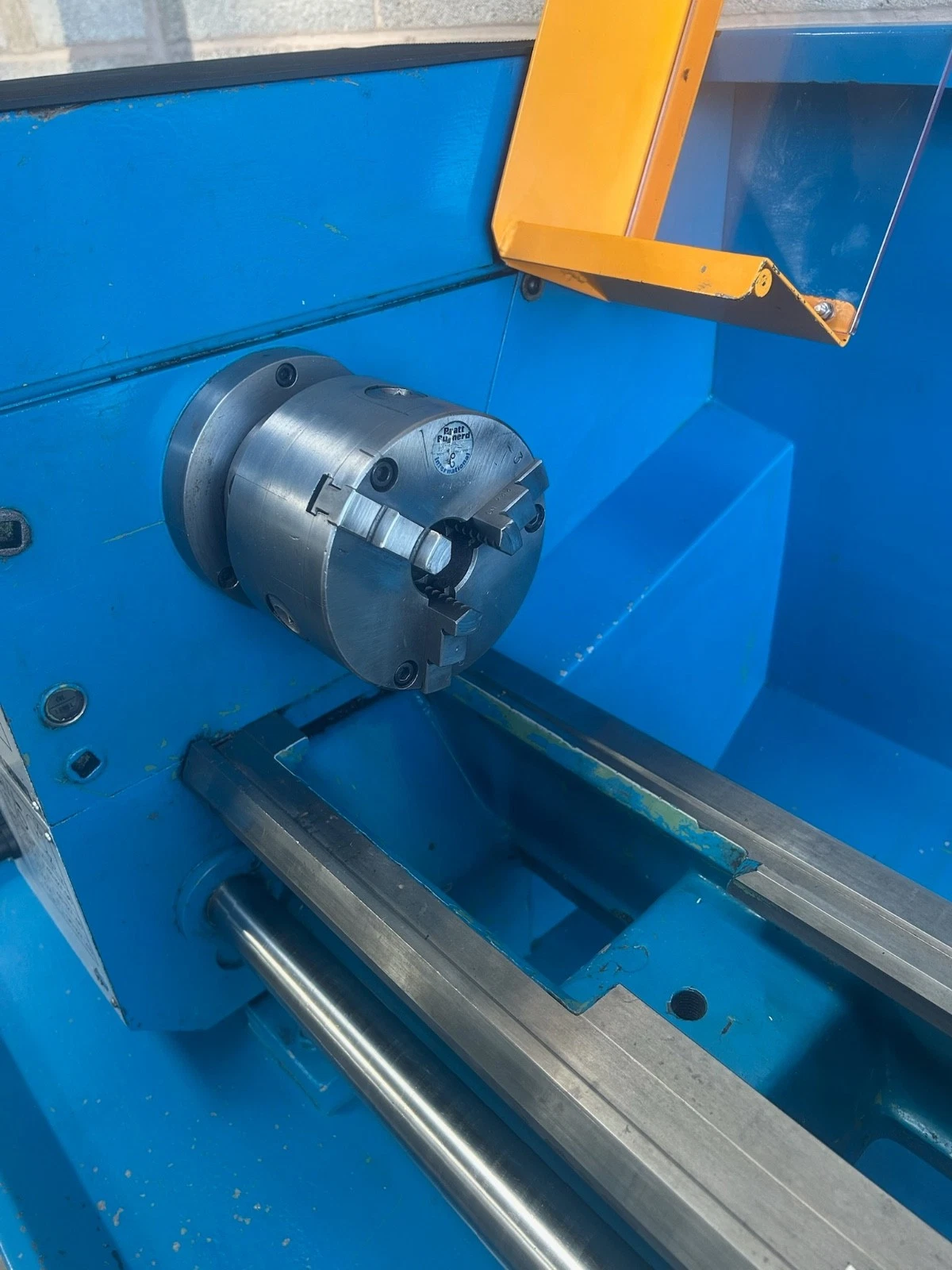

3 jaw chuck with both internal and external set matched jaws

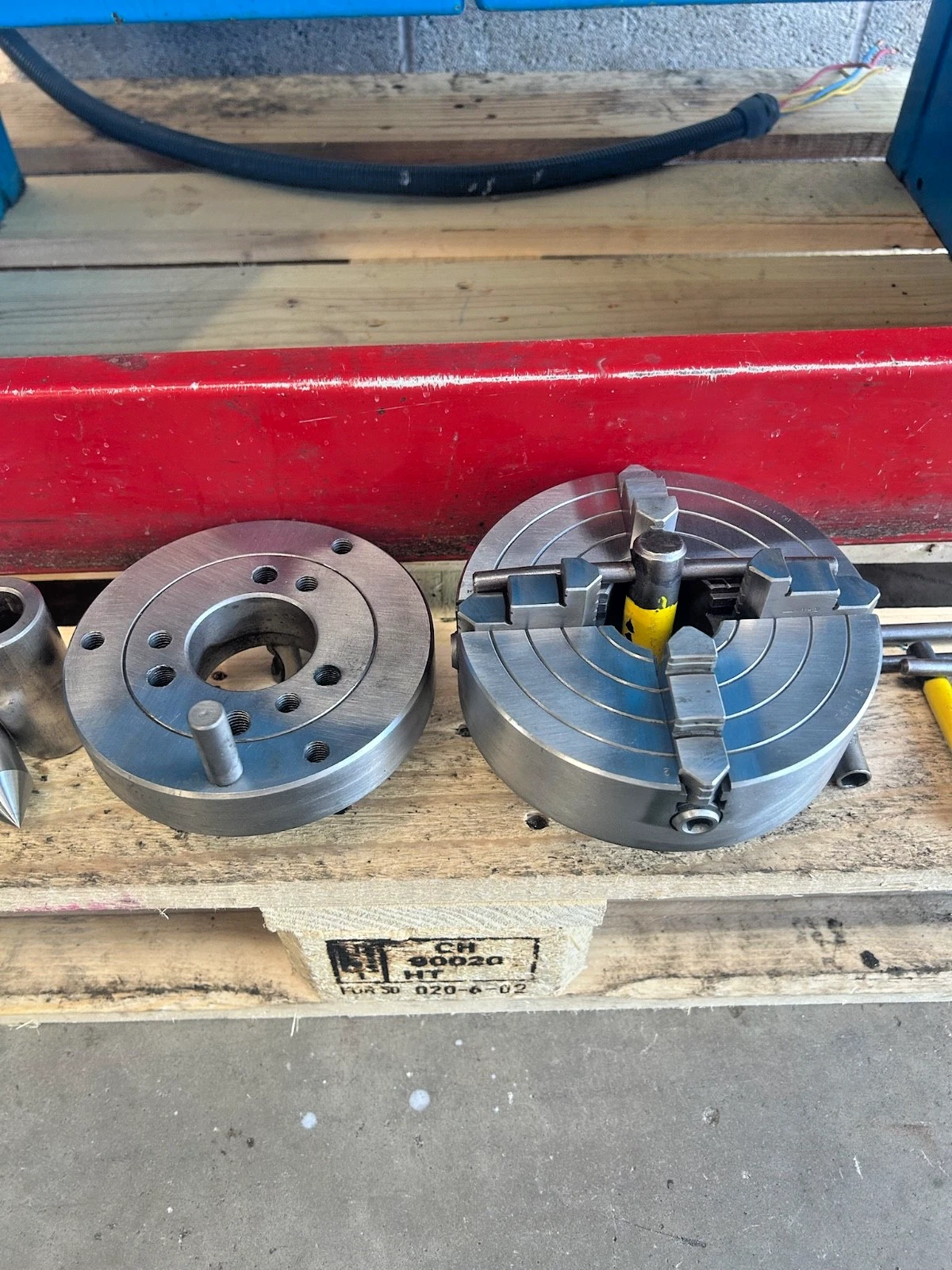

4 jaw independent chuck

Pair of new dead centres and a headstock reducing bush

New revolving centre

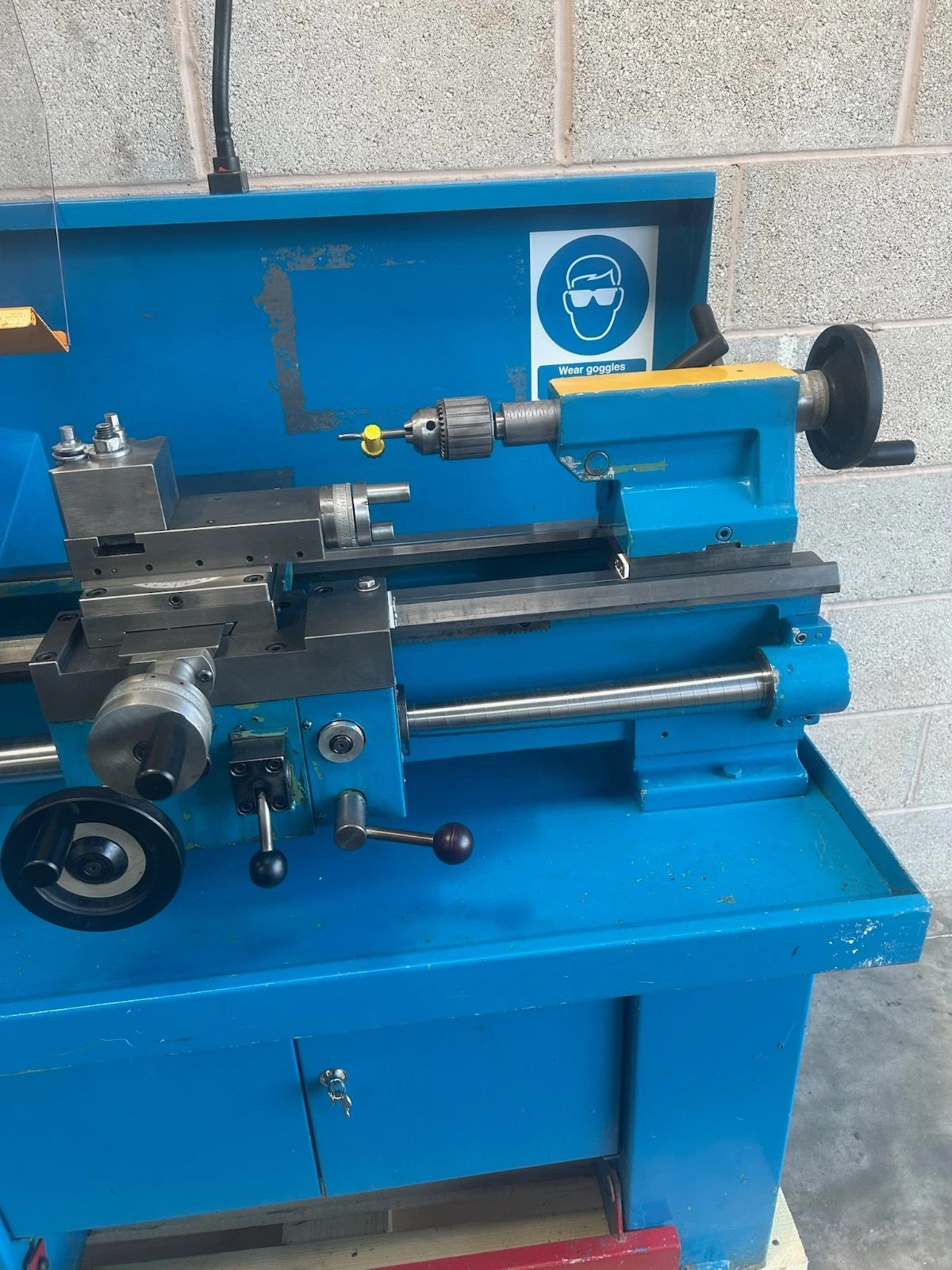

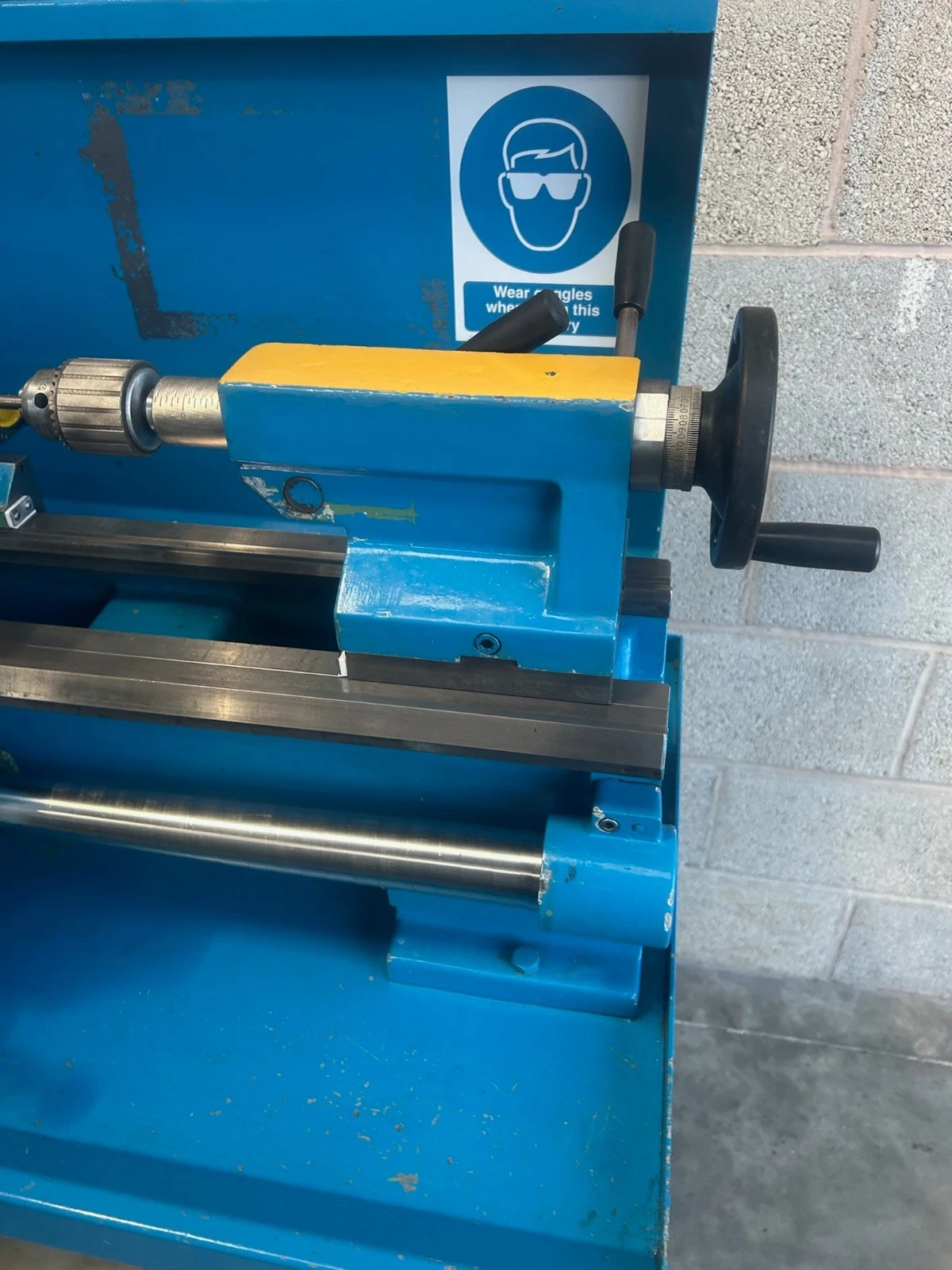

Drill chuck for tailstock

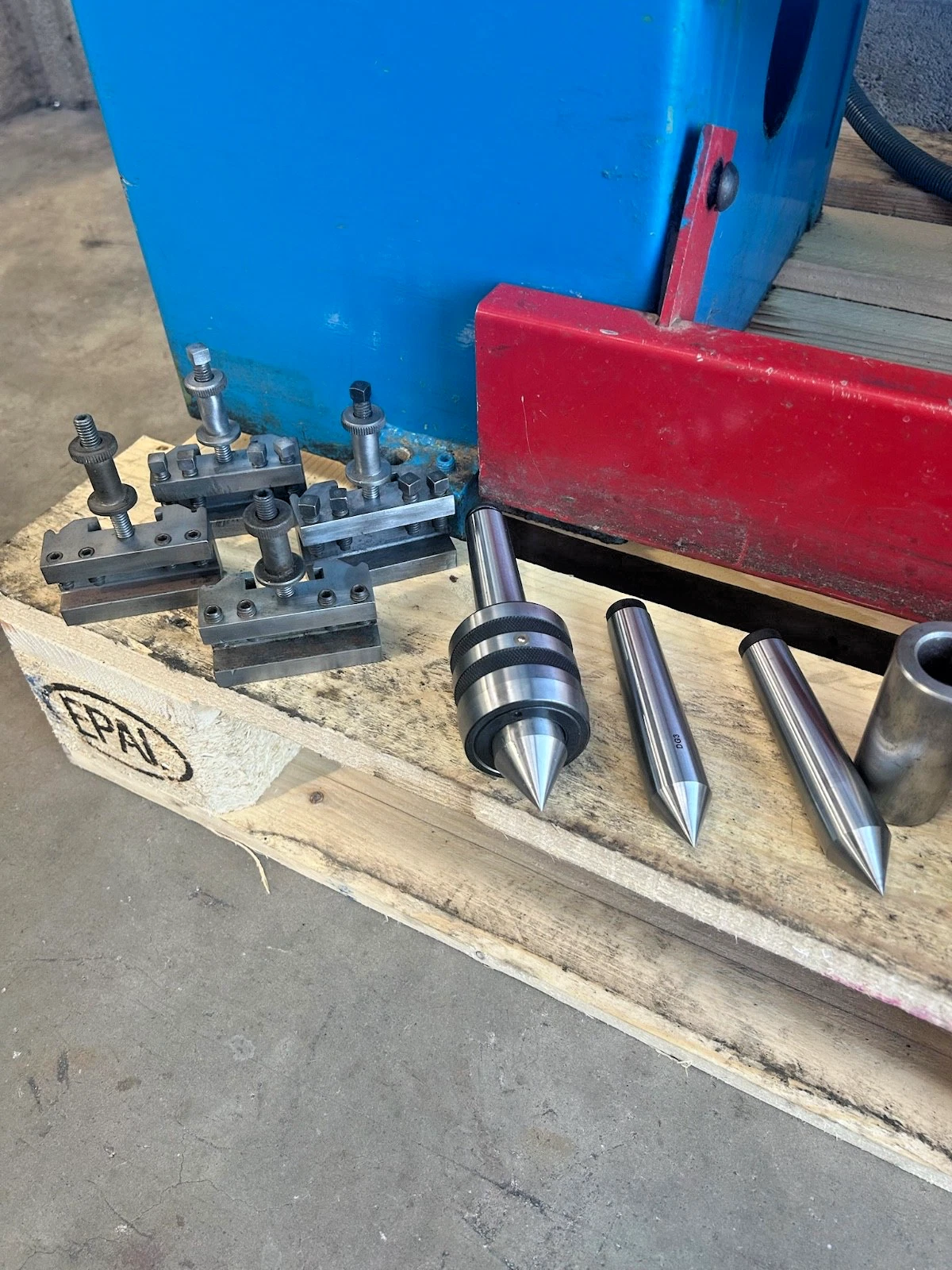

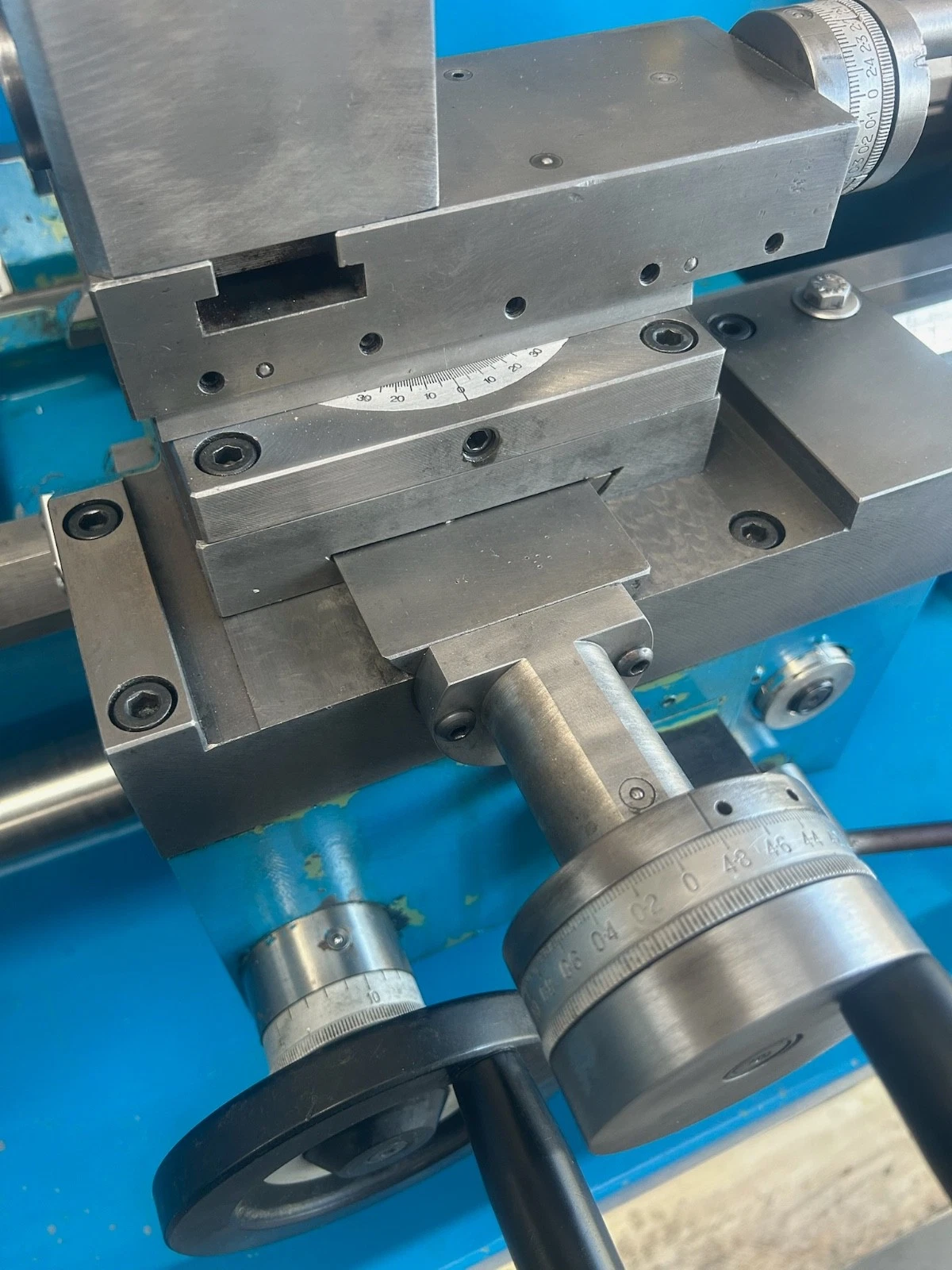

Quick change tool post & 4 standard holders

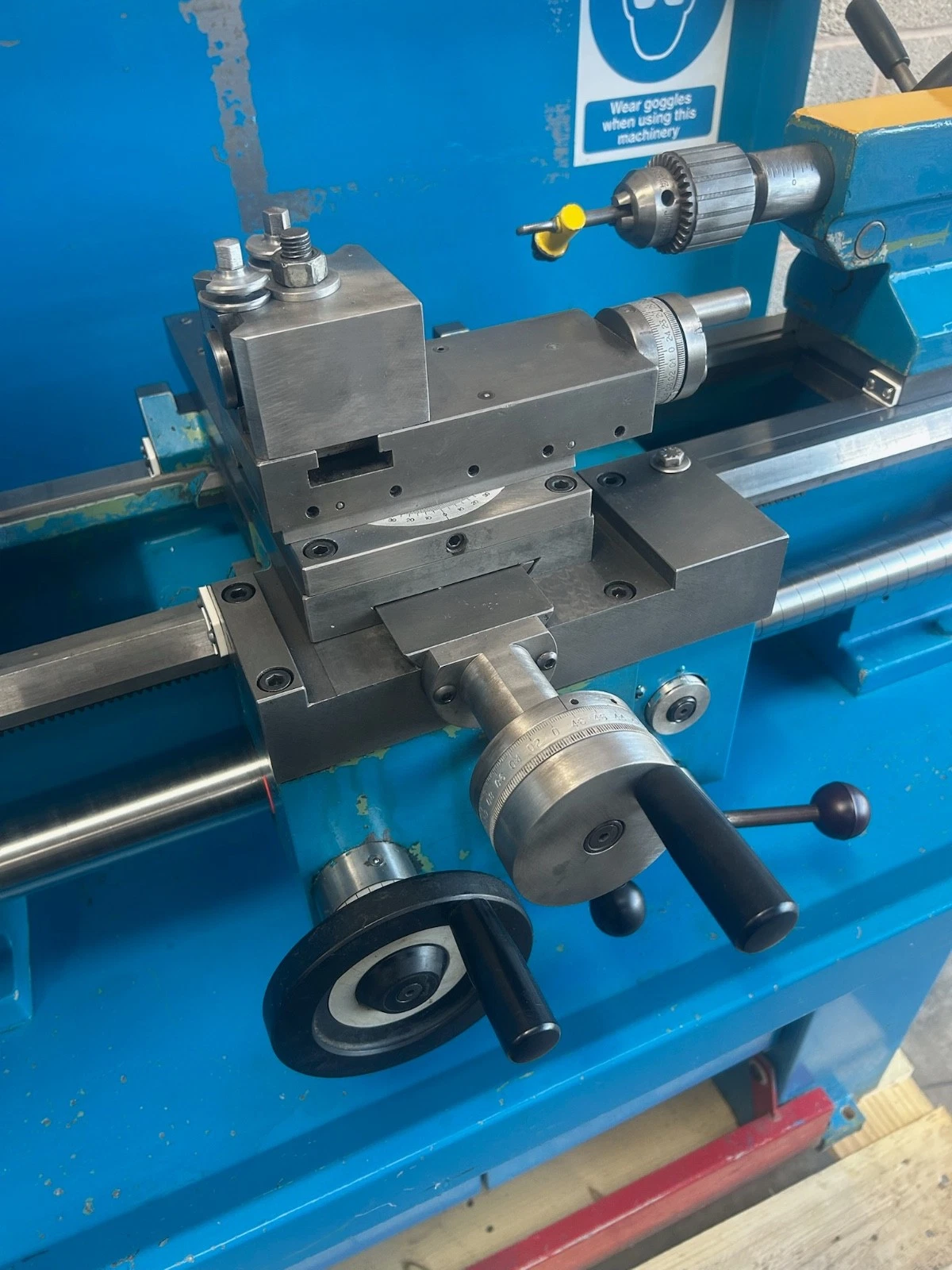

Machine is fitted with light, telescopic leadscrew guards (new), thread dial indicator, power feeds on both axis.

The switch for the coolant pump is installed which means it probably had a coolant pump when supplied new but it has been removed but this means if you want to install a coolant pump, it can easily be wired in.
